4100-053LF

Overview

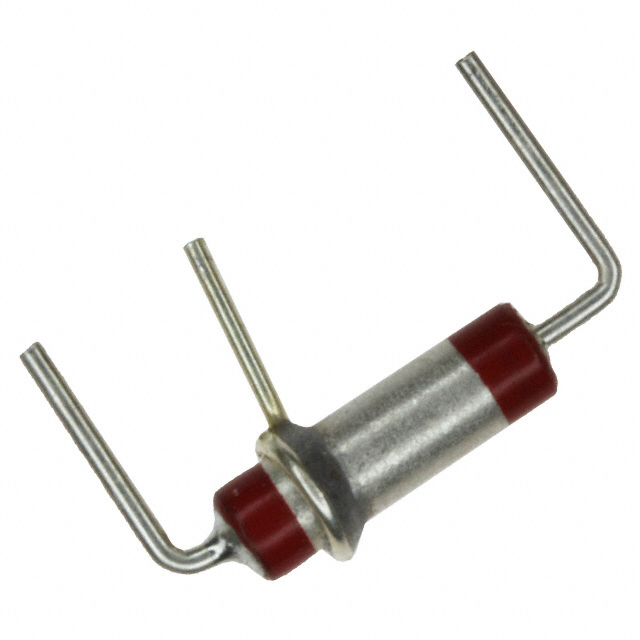

The 4100-053LF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It utilizes a Pi filter circuit topology to suppress electromagnetic interference. The component features a capacitance of 10 nF (10000 pF) and is rated for a maximum DC current of 10 A with a voltage rating of 250 V. Physically, it has a diameter of 5.08 mm and a length of 0.6 inches. The unit weighs approximately 605 mg and is supplied in bulk packaging.

Feature Summary

• Pi filter circuit topology for effective noise suppression
• High current handling capability up to 10 A
• Axial leaded through-hole construction

Applications

• Power supply input filtering
• DC bus line noise reduction
• Electronic equipment chassis penetration points

Procurement Notes

Verify the manufacturer part number 4100-053LF against official Tusonix or CTS documentation to ensure authenticity. Confirm that the RoHS compliance status matches project requirements, as indicated in official specifications. Check for any specific REACH SVHC declarations relevant to your region. Ensure the bulk packaging format aligns with your assembly process capabilities before finalizing procurement orders.

Selection Notes

Select this component when a Pi filter configuration is required for high-current DC applications. The 10 nF capacitance value provides specific attenuation characteristics suitable for certain frequency ranges. Ensure the operating environment stays within the specified voltage and current limits. The axial package style requires appropriate panel mounting or PCB hole planning during the design phase.

Part Context

This component belongs to the 4100 series of EMI feedthrough filters from Tusonix. These filters are designed for robust noise suppression in industrial and commercial electronics. The series offers various capacitance values and current ratings to suit different power line filtering needs while maintaining compact physical dimensions for easy integration into existing systems.

Replacement Considerations

Consult official Tusonix or CTS catalogs for direct cross-references. Verify that any substitute maintains the same Pi filter topology, 10 nF capacitance, 10 A current rating, and 250 V voltage rating. Physical dimensions and terminal configurations must match for mechanical compatibility.
