4101-003LF

Overview

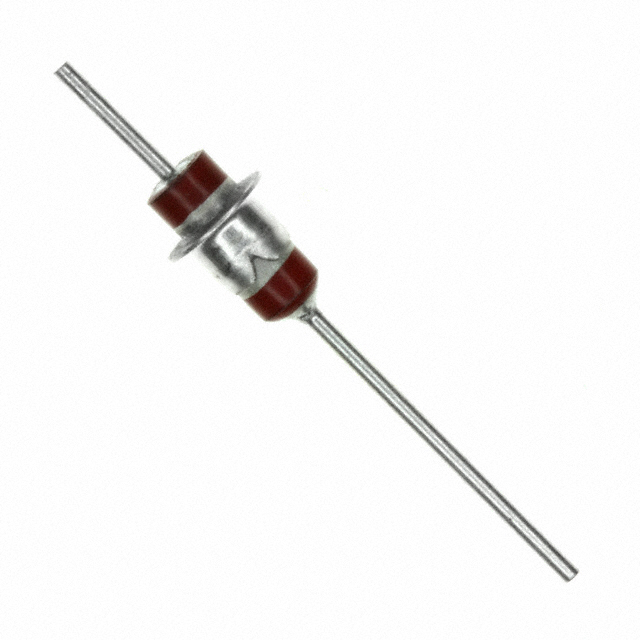

The 4101-003LF is a tubular EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It utilizes a Pi-type LC circuit topology for signal line filtering. The component features a maximum DC current rating of 10 A and a voltage rating of 125 V to 250 V. It includes a capacitance value of 1750 pF and offers a minimum insulation resistance of 10 GOhms (10,000 MΩ). The unit supports through-hole mounting with silver-plated terminals and operates within a temperature range of 0°C to +125°C.

Feature Summary

• Pi-type LC circuit topology for effective noise suppression
• Tubular construction designed for panel or bulkhead mounting
• High current handling capability suitable for power lines
• Silver-plated termination for reliable soldering

Applications

• Electromagnetic interference suppression in data lines
• RFI filtering for electronic equipment enclosures
• Signal integrity protection in industrial control systems

Procurement Notes

Verify the specific voltage rating required for your application, as sources indicate both 125 V and 250 V ratings. Confirm the capacitance tolerance and exact insertion loss specifications against the official datasheet before integration. Ensure the physical dimensions match your panel cutout requirements. Check for RoHS compliance status if environmental regulations apply to your manufacturing process.

Selection Notes

Select this component when high-current filtering is required alongside significant capacitance values. The axial lead configuration facilitates easy installation into chassis panels. Consider the operating temperature range to ensure reliability under thermal stress. Compare the physical size constraints against available space in the target enclosure.

Part Context

This part belongs to the 4101 series of EMI feedthrough filters from Tusonix/CTS. These components are designed for robust performance in harsh environments. The series typically offers various capacitance and current ratings to suit different filtering needs. The 4101-003LF represents a specific configuration optimized for high-capacitance applications.

Replacement Considerations

Direct substitutes may include other parts from the 4101 series with similar electrical characteristics. Verify that any replacement matches the 10 A current rating and 1750 pF capacitance. Ensure the physical footprint and terminal type are compatible with existing PCB or panel layouts.
