Product Detailed Parameters
- Description：FILTER LC(PI) 4500PF CUSTOM
- Series：4100
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：50dB @ 100MHz
- Resistance - Channel (Ohms)：-
- Values：C = 4500pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：-
- Voltage - Rated：500V
- Mounting Type：Custom
- Package / Case：Axial, Eyelet - Hook Lead
- Size / Dimension：0.312" Dia x 0.625" L (7.92mm x 15.88mm)
- Height：-
- Current：25 A
Download product information
Overview

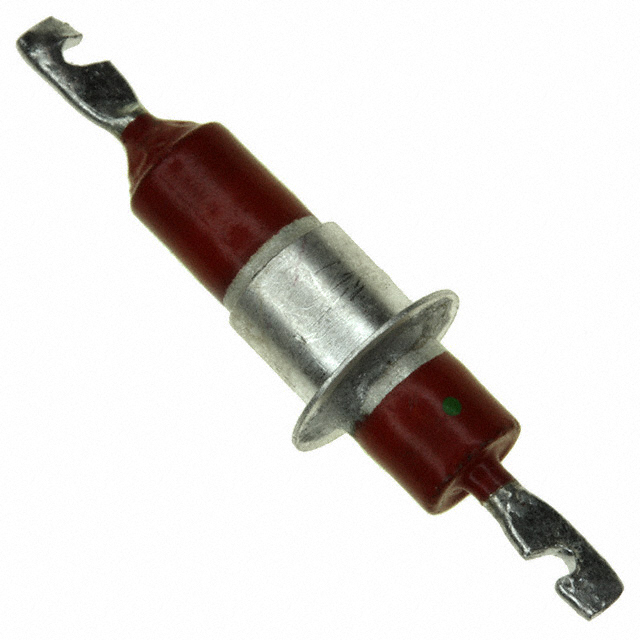

The 4106-001LF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a third-order low-pass Pi filter circuit topology designed for effective noise suppression. The component has a capacitance of 4500 pF and a voltage rating of 1 kV. It supports a maximum DC current of 25 A. The unit utilizes a chassis mount configuration with axial leads and a bushing style package. Physical dimensions include a diameter of 7.92 mm.
Feature Summary
- Third-order low-pass Pi filter circuit topology
- Chassis mount design with axial leads and bushing style
- High voltage rating capability
Applications
- Electromagnetic compatibility (EMC) filtering in electronic systems
- Power line noise suppression
- Signal integrity protection in sensitive circuits
Procurement Notes
Verify the specific suffix LF indicates lead-free compliance when sourcing. Confirm the manufacturer is Tusonix, a subsidiary of CTS Electronic Components. Check datasheets for precise mounting hole dimensions and lead specifications to ensure mechanical fit within the intended chassis assembly.
Selection Notes
Select this component for applications requiring high current handling up to 25 A alongside significant voltage isolation at 1 kV. The Pi filter structure offers superior attenuation compared to single-stage filters. Ensure the chassis mounting method aligns with the available panel thickness and threading requirements specified in the mechanical drawings.
Part Context
This part belongs to the 4100 series of EMI/RFI filters from Tusonix. These components are engineered for robust performance in demanding electromagnetic environments. The series includes various capacitance and voltage ratings to suit different power and signal line requirements across industrial and commercial electronics.
FAQ
What is the filter order of the 4106-001LF?
The 4106-001LF is a third-order low-pass filter.
Does the 4106-001LF use a solder mount or chassis mount?
It uses a chassis mount configuration with axial leads and a bushing style package.
