4202-053LF

Overview

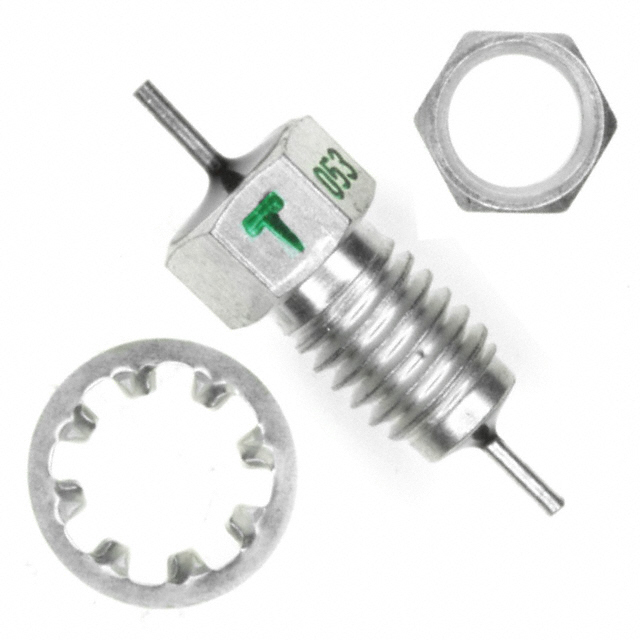

The 4202-053LF is a third-order low-pass LC (Pi) EMI filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features an axial bushing package design with a capacitance value of 5000 pF and a current rating of 10 A. The component is engineered for effective electromagnetic interference suppression in electronic circuits.

Feature Summary

• Third-order low-pass LC (Pi) filter topology
• Axial bushing mounting configuration

Applications

• Electromagnetic interference filtering
• RFI suppression in electronic systems

Procurement Notes

Verify the specific RoHS compliance status and datasheet revisions directly with the manufacturer or authorized distributors before procurement. Confirm that the axial bushing form factor aligns with the mechanical constraints of the target assembly to ensure proper installation and electrical connectivity.

Selection Notes

Select this component when a third-order attenuation characteristic is required within an axial bushing footprint. The 5000 pF capacitance and 10 A rating define its operational limits. Ensure the application environment supports the physical dimensions and mounting style provided by this specific model variant.

Part Context

This part belongs to the Tusonix feed-through capacitor and EMI filter product line. It utilizes a Pi-network structure to provide enhanced filtering performance compared to single-stage components. The axial bushing style allows for direct panel or chassis mounting, integrating the filter function with the structural enclosure.

FAQ

What is the filter topology of the 4202-053LF?

It utilizes a third-order low-pass LC (Pi) filter topology.

What is the capacitance value of this component?

The capacitance value is 5000 pF.
