Product Detailed Parameters
- Description：FILTER LC(PI) 5000PF CHASSISSIS
- Series：4200
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：65dB @ 100MHz
- Resistance - Channel (Ohms)：-
- Values：C = 5000pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：100V
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing, 1 Turret Lead
- Size / Dimension：0.250" Dia x 0.469" L (6.35mm x 11.91mm)
- Height：-
- Current：10:00 AM
Download product information
Overview

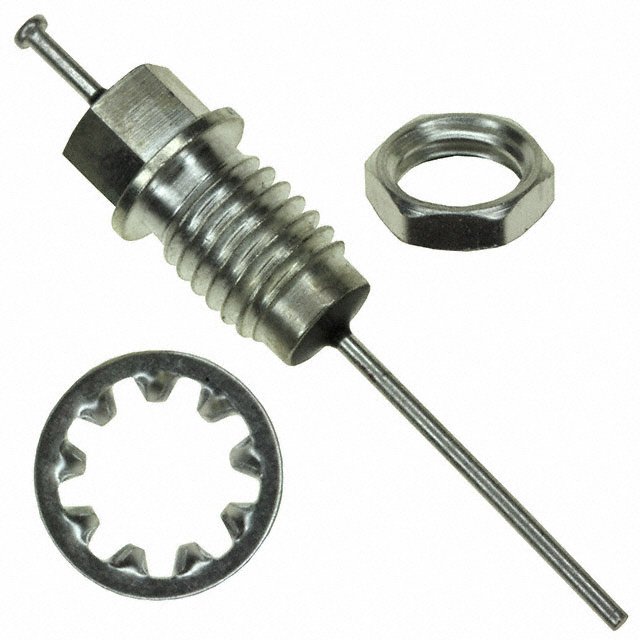

The 4203-053LF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 5000 pF and is designed for chassis mounting applications. The component utilizes an LC Pi filter topology to provide effective noise suppression in electronic circuits.
Feature Summary
- Provides electromagnetic interference suppression through LC Pi filter topology
- Designed for direct chassis mounting installation
- Utilizes axial bushing configuration with solder eyelets
Applications
- Chassis-mounted electronic equipment requiring EMI filtering
- Power line filtering in industrial control systems
- Signal integrity protection in sensitive electronic assemblies
Procurement Notes
Verify the specific datasheet version for the 4203-053LF to confirm exact electrical ratings and mechanical dimensions before integration. Ensure compatibility with existing chassis mounting hardware and verify that the 5000 pF capacitance meets the circuit requirements. Confirm RoHS compliance status as per current manufacturer documentation.
Selection Notes
Select this component when a 5000 pF capacitance value is required for EMI suppression in chassis-mounted configurations. The LC Pi topology offers high attenuation characteristics suitable for broadband noise reduction. Consider the physical dimensions and mounting style to ensure proper fit within the enclosure design constraints.
Part Context
This part belongs to the 4203 series of EMI feedthrough filters from Tusonix/CTS. These components are engineered for robust performance in demanding environments, offering reliable noise filtration for power and signal lines. The series is known for its compact axial bushing design which facilitates easy installation on panel cutouts.
Replacement Considerations
Cross-reference with other 4203 series variants or equivalent LC Pi feedthrough filters from Tusonix if availability is constrained. Verify that substitute parts match the 5000 pF capacitance and chassis mounting requirements to maintain system performance.
