4204-000LF

Description：FILTER LC(PI) 1500PF CHASSISSIS
Series：4200
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:60b52226044c Category: EMI/RFI Filters (LC, RC Networks) Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER LC(PI) 1500PF CHASSISSIS
Series：4200
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Type：Low Pass
Filter Order：3rd
Technology：LC (Pi)
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：45dB @ 100MHz
Resistance - Channel (Ohms)：-
Values：C = 1500pF
ESD Protection：No
Operating Temperature：-55°C ~ 125°C
Applications：Data Lines for Mobile Devices
Voltage - Rated：200V
Mounting Type：Chassis Mount
Package / Case：Axial, Bushing
Size / Dimension：0.289" Dia x 0.468" L (7.34mm x 11.89mm)
Height：-
Current：10:00 AM

Download product information

4204-000LF

Overview

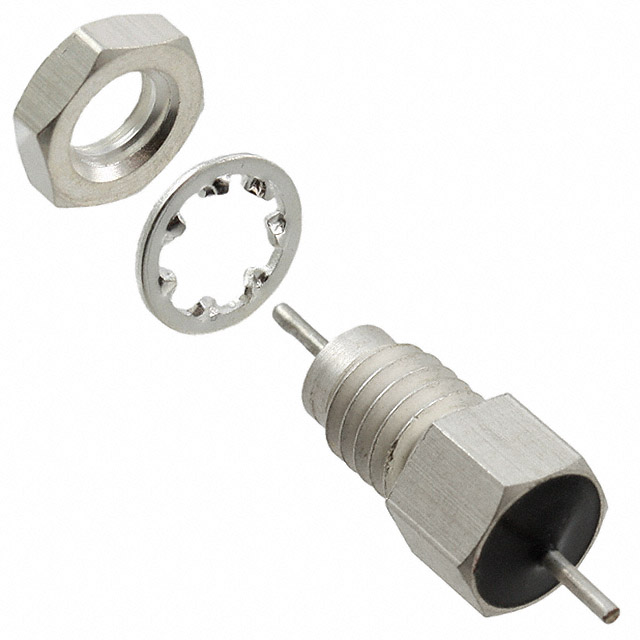

The Tusonix 4204-000LF is a third-order low-pass LC (Pi) EMI filter designed for chassis mounting. It features a capacitance of 1500 pF and supports a maximum DC current of 10 A with a rated voltage of 100 V. The component utilizes an axial bushing configuration with a single turret lead, measuring 0.250 inches in diameter and 0.468 inches in length. It provides significant attenuation, achieving 65 dB at 100 MHz, and operates reliably within a temperature range of -55°C to +125°C.

Feature Summary

Third-order low-pass LC (Pi) topology for enhanced noise suppression
Chassis-mount design integrating return path and enclosure bonding
Axial bushing construction with a single turret lead for secure installation

Applications

Mobile device data line filtering
Chassis-mounted EMI/RFI suppression systems
Low-pass filtering for sensitive electronic circuits

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical characteristics and mechanical dimensions. Ensure that the procurement channel sources genuine components from authorized distributors to guarantee compliance with RoHS3 standards and operational reliability in critical applications.

Selection Notes

Select this component when high attenuation is required for single-channel applications involving moderate current loads. The chassis-mount form factor is suitable for environments where direct enclosure bonding enhances filter performance. Verify that the 10 A current rating and 100 V voltage limit align with the system's operational parameters.

Part Context

This component belongs to the 4200 series of EMI feedthrough filters manufactured by Tusonix, a subsidiary of CTS Electronic Components. The series specializes in LC and RC network filters designed for robust electromagnetic compatibility in demanding industrial and mobile environments.
