Product Detailed Parameters
- Description：FILTER LC(PI) 1500PF CHASSISSIS
- Series：4200
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：35dB @ 100MHz
- Resistance - Channel (Ohms)：-
- Values：C = 1500pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：125V
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing
- Size / Dimension：0.187" Dia x 0.200" L (4.75mm x 5.08mm)
- Height：-
- Current：15 A
Download product information
Overview

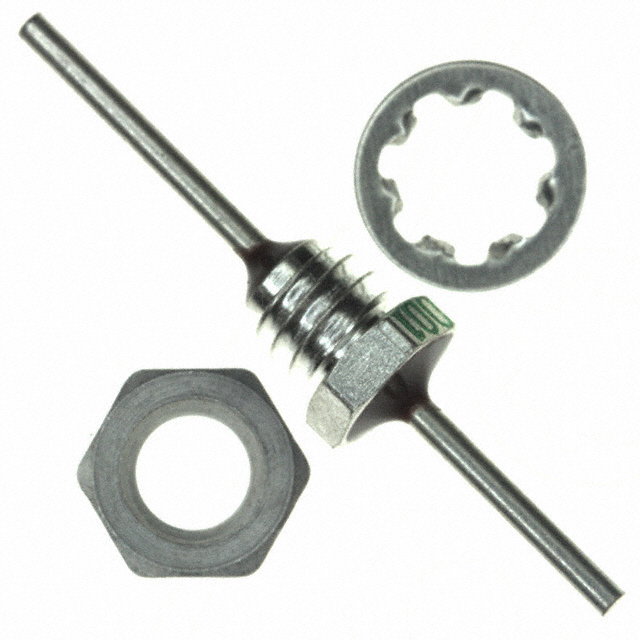

The 4205-001LF is an LC (Pi) EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a third-order low-pass circuit topology with a capacitance of 1500 pF. The component supports a maximum DC current of 15 A and has a voltage rating of 250 V. It utilizes an axial bushing mounting style with an 8-32 UNC-2A thread size. Physical dimensions include a diameter of 0.187 inches, a height of 0.2 inches, and a length of 0.987 inches.
Feature Summary
- Provides effective electromagnetic interference suppression through a Pi-filter configuration.
- Designed for high-current applications with a 15 A maximum DC current rating.
- Features a robust axial bushing mount suitable for panel installation.
Applications
- Power supply input filtering
- Electronic equipment chassis grounding
- Industrial control systems
Procurement Notes
Verify the specific suffix requirements against the official datasheet to ensure compliance with RoHS standards and lead-free specifications. Confirm that the 8-32 UNC-2A thread size matches the mechanical interface of the intended application panel. Ensure the operating environment remains within the specified electrical ratings to maintain filter performance and reliability.
Selection Notes
Select this component when a third-order low-pass response is required for noise attenuation in power lines. The 1500 pF capacitance value offers a balance between filtering effectiveness and physical size. Consider the axial bushing form factor for direct panel mounting applications where space constraints allow for the specified dimensions.
Part Context
This part belongs to the 4205 series of EMI feedthrough filters from Tusonix/CTS. The series includes various capacitance values and voltage ratings tailored for different power line filtering needs. The 4205-001LF specifically targets applications requiring moderate capacitance with high current handling capabilities.
Replacement Considerations
Check for equivalent parts within the same series or manufacturer offering similar capacitance and current ratings. Verify mechanical compatibility, particularly the thread size and mounting style, before substituting.
