Product Detailed Parameters
- Description：FILTER LC(PI) 1500PF CHASSISSIS
- Series：4200
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Tray
- Type：Low Pass
- Filter Order：3rd
- Technology：LC (Pi)
- Number of Channels：1
- Center / Cutoff Frequency：-
- Attenuation Value：50dB @ 100MHz ~ 10GHz
- Resistance - Channel (Ohms)：-
- Values：C = 1500pF
- ESD Protection：No
- Operating Temperature：-55°C ~ 125°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：2000V (2kV)
- Mounting Type：Chassis Mount
- Package / Case：Axial, Bushing - 2 Notched Leads
- Size / Dimension：0.500" Dia x 0.500" L (12.70mm x 12.70mm)
- Height：-
- Current：25 A
Download product information
Overview

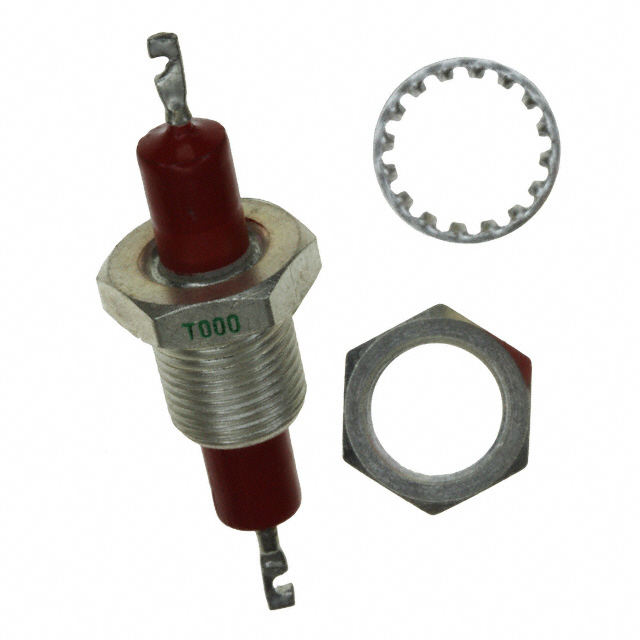

The 4208-000LF is an EMI/RFI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a Pi-filter circuit topology with a capacitance of 1500 pF and a voltage rating of 25 A axial current handling. The component utilizes a chassis mount installation type with bushing mounting. Key physical dimensions include a diameter of 12.7 mm (0.5 inches) and a maximum operating temperature of +125°C. The package type is bulk.
Feature Summary
- Pi-filter LC network topology for enhanced noise suppression
- High current axial bushing design with notched leads
- Chassis mount configuration for secure panel integration
Applications
- Electromagnetic interference filtering in power supply lines
- RFI suppression in industrial control systems
- Signal integrity protection in communication equipment
Procurement Notes
Verify the specific lead time requirements as manufacturer standard lead times may vary. Confirm RoHS3 compliance status for your project specifications. Ensure chassis mounting holes align with the bushing dimensions before procurement. Check for any specific REACH SVHC declarations required for your region.
Selection Notes
Select this component when high current handling and low impedance paths are required. The Pi-filter structure offers superior attenuation compared to single-capacitor designs. Consider the chassis mount form factor for applications requiring robust mechanical stability. Verify thermal limits against the maximum operating temperature of +125°C.
Part Context
This part belongs to the Tusonix EMI/RFI filter family, specifically designed for power line filtering. It complements other feedthrough capacitors like the 4702 series but offers distinct Pi-filter characteristics. The product is categorized under LC networks and is suitable for demanding electromagnetic compatibility environments.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult Tusonix technical support for equivalent alternatives if direct replacement is necessary.
