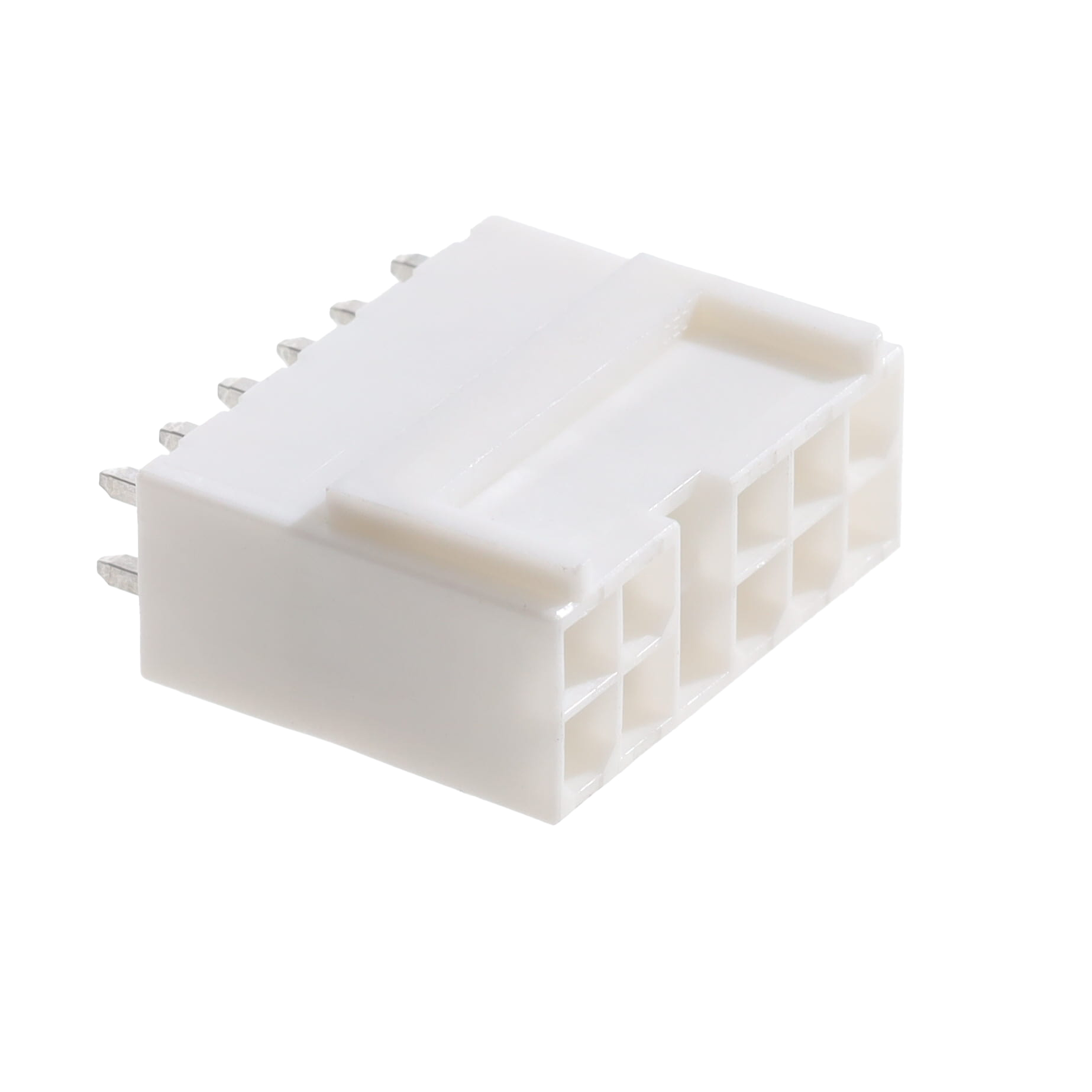

420B2V12FL0 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists On Shore Technology Inc.. Its product description is 4.2MM DUAL ROW HOUSING VERTICAL. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 420B2V12FL0
- Description：4.2MM DUAL ROW HOUSING VERTICAL
- Series：-
- Mfr：On Shore Technology Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.800" (20.32mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-25°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：9A
- Voltage Rating：600V
Headers, Male Pins datasheet and documents for 420B2V12FL0
Headers, Male Pins Overview
The 420B2V12FL0 is a through-hole connector header manufactured by On Shore Technology Inc. It features a 12-position configuration with a 0.165-inch (4.20mm) pitch. The component utilizes a locking ramp fastening type and solder termination. Key physical dimensions include a contact length of 0.138 inches (3.50mm) and an insulation height of 0.800 inches (20.32mm).
Headers, Male Pins Feature Summary
- Through-hole mounting design for PCB integration.
- Locking ramp mechanism for secure mating.
Headers, Male Pins Applications
- Data signal interconnects
- Control circuit connections
- Power application headers
Headers, Male Pins Procurement Notes
Verify the specific suffix FL0 against the manufacturer's current datasheet to confirm exact plating, material composition, and packaging specifications. Ensure compatibility with existing panel cutouts and mating connectors before procurement.
Headers, Male Pins Selection Notes
Select this part when a 12-position through-hole header with a 4.20mm pitch is required. Confirm that the locking ramp style aligns with the assembly process and that the insulation height fits within the enclosure constraints.
Headers, Male Pins Part Context
This component belongs to On Shore Technology's line of euro-style terminal blocks and interconnect products. The brand specializes in providing various configurations for electronic industry applications, including sockets and custom cables.
Headers, Male Pins Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference pin pitch and insulation height when evaluating alternative suppliers.
Headers, Male Pins FAQ
What is the contact shape?
The official documentation lists 'Contact Shape' as a parameter but does not provide the specific descriptive value in the available text.
Is this component UL certified?
On Shore Technology components are associated with UL Listing E494425 for connectors used in data, signal, control, and power applications.
