4260-002LF

Overview

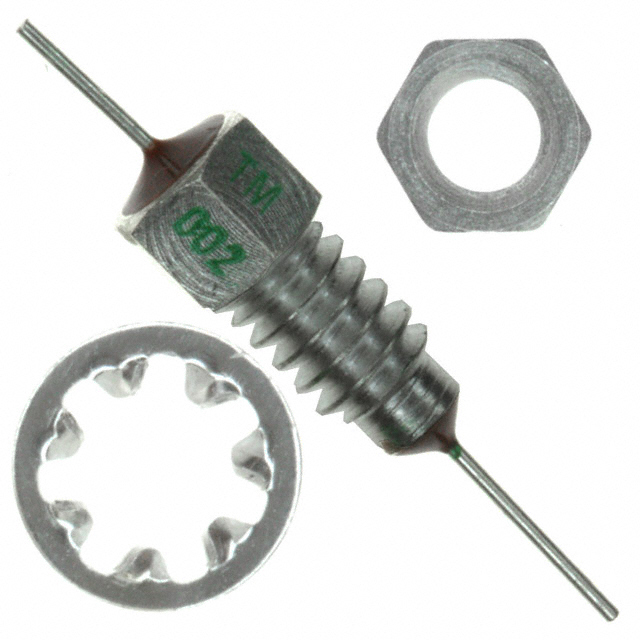

The 4260-002LF is a third-order LC (Pi) low-pass EMI filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. Designed for chassis mounting, this component features an axial bushing package configuration. It provides a capacitance value of 7500 pF and supports a maximum current rating of 3 A with a voltage rating of 100 V. The unit operates within a temperature range of -55°C to 125°C.

Feature Summary

• Third-order LC Pi-filter topology for enhanced attenuation
• Chassis mount installation via axial bushing design
• Low-pass filtering characteristics for EMI suppression

Applications

• Mobile device data line protection
• Chassis-mounted electronic equipment filtering
• EMI suppression in power and signal lines

Procurement Notes

Verify the specific manufacturer part number against official Tusonix or CTS documentation to confirm technical specifications. Ensure that ordering suffixes do not alter functional parameters unless explicitly stated in the source datasheet. Cross-reference distributor listings with original manufacturer catalogs to validate authenticity and compliance status before procurement.

Selection Notes

Select this component when a third-order low-pass filter is required for chassis-mounted applications. Consider the 7500 pF capacitance and 3 A current rating relative to circuit requirements. Verify compatibility with axial bushing mounting styles and ensure the operating temperature range meets environmental demands.

Part Context

This component belongs to the 4260 series of feed-through capacitors and filters from Tusonix. It is categorized under EMI/RFI filters, specifically LC networks. The product is designed for robust electromagnetic interference suppression in industrial and mobile applications requiring high reliability.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Tusonix catalogs for direct equivalents.
