Headers, Male Pins Overview

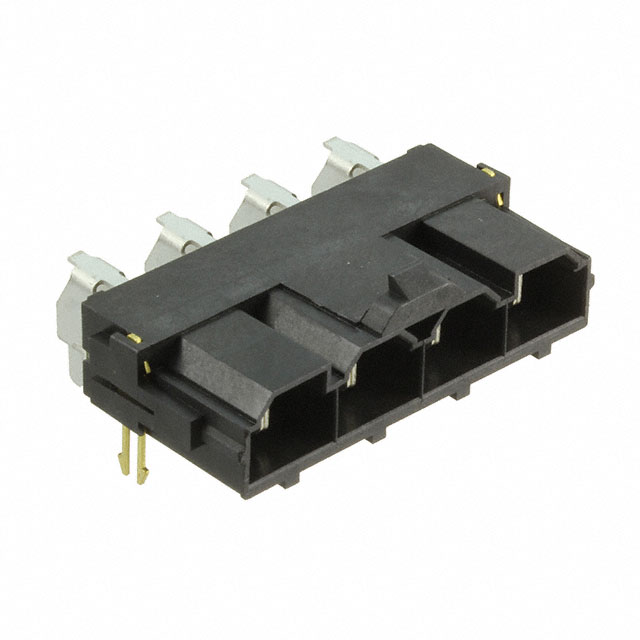

The Molex 42820-4214 is a Mini-Fit Sr. series right-angle through-hole PCB pin header designed for wire-to-board applications. It features a 10 mm pitch with four contacts arranged in a single row. The connector utilizes brass contact material with silver over nickel plating to ensure durability and reliable electrical performance. Rated for up to 50A current and 600V voltage, this shrouded male header supports high-power delivery in compact spaces suitable for industrial and consumer electronics.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration for secure PCB integration
• Shrouded design provides alignment and protection for mating connections
• High-current capacity support suitable for power distribution applications

Headers, Male Pins Applications

• Wire-to-board interconnections in industrial equipment
• Power delivery systems in consumer electronics
• PCB-mounted signal and power routing in automotive assemblies

Headers, Male Pins Procurement Notes

Verify the exact part number includes the hyphen (42820-4214) to distinguish from similar variants. Confirm that the required orientation matches the right-angle specification. Ensure the application environment does not exceed the 600V rating or 50A current limit. Check for any specific packaging requirements if ordering bulk quantities from authorized distributors.

Headers, Male Pins Selection Notes

Select this component when a robust, high-current connection is needed on a printed circuit board. The 10 mm pitch requires adequate spacing on the layout. Consider the right-angle form factor for space-constrained designs where vertical clearance is limited. Verify that the mating wire gauge and housing are compatible with the Mini-Fit Sr. system.

Headers, Male Pins Part Context

This part belongs to the Mini-Fit Sr. family, which focuses on compact power solutions. The series is known for supporting high currents in small footprints. It is widely used in applications requiring reliable power transmission between wires and boards. The product line serves various sectors including automotive, data communication, and industrial automation.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the Mini-Fit Sr. series include other 4-position right-angle headers with identical 10 mm pitch. Ensure any replacement maintains the same shrouded design and current ratings. Cross-reference with official Molex documentation for direct equivalents.
