42BCF6R

Overview

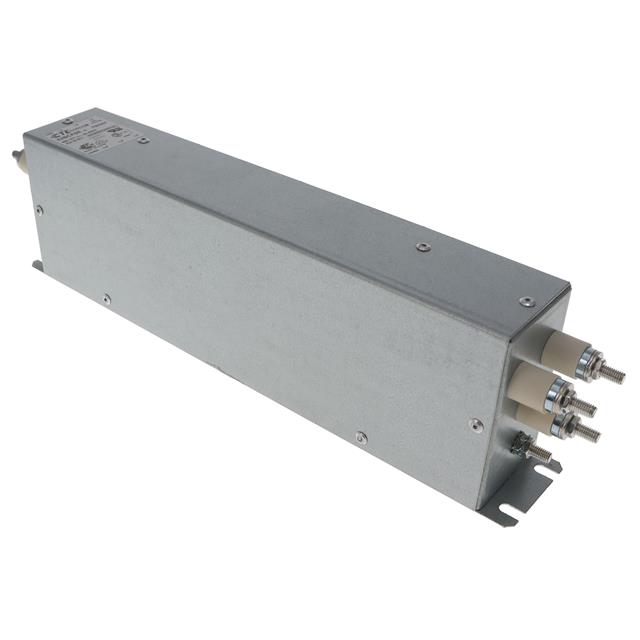

The TE Connectivity Corcom Filters 42BCF6R is a three-phase EMC/RFI power line filter designed for chassis mounting. It features a two-stage filtering configuration with threaded M5 posts for secure installation. The unit supports a rated current of 42 A at 50/60Hz and operates within a voltage rating of up to 277 VAC or 480 VAC, depending on the specific application context. Key electrical parameters include a capacitance of 0.1 µF and an inductance of 1.6 mH. The maximum leakage current is specified at 8.7 mA. The filter weighs approximately 2 kg and holds UL and VDE approvals.

Feature Summary

• Two-stage EMI/RFI filtering architecture for enhanced noise suppression
• Chassis mount design with threaded M5 posts for robust mechanical stability
• Capable of handling high current loads up to 42 A in three-phase configurations

Applications

• Industrial machinery requiring strict electromagnetic compatibility
• Three-phase power distribution systems in commercial environments
• Equipment sensitive to radio frequency interference

Procurement Notes

Verify that the required voltage rating aligns with your system's specifications, as data indicates both 277 VAC and 480 VAC contexts. Confirm the need for the specific 42 A current rating and ensure chassis mounting provisions accommodate the M5 threaded post interface. Check for UL and VDE certification requirements relevant to your region's safety standards before finalizing procurement.

Selection Notes

Select this component when a two-stage filtering solution is necessary for three-phase AC power lines. Ensure the physical space allows for chassis mounting and that the panel thickness supports the M5 threaded post installation. Consider the 2 kg weight for structural support needs. Verify that the 0.1 µF capacitance and 1.6 mH inductance values meet the specific attenuation requirements of your application.

Part Context

This model belongs to the TE Connectivity Corcom Filters series, specializing in power line filters for general-purpose applications. The brand is recognized for providing EMC/EMI solutions across various industrial sectors. The 42BCF6R specifically addresses the needs of three-phase systems where higher current capacities and robust filtering stages are critical for maintaining signal integrity and regulatory compliance.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
