42KEHD10ABSD

Overview

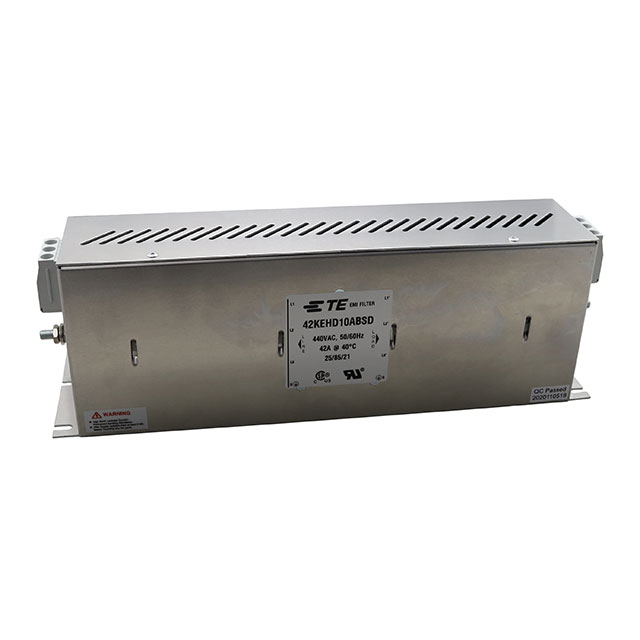

The TE Connectivity Corcom Filters 42KEHD10ABSD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a dual-stage architecture and supports a rated voltage of 440 VAC with a current capacity of 42 A at 50 Hz or 60 Hz. The unit utilizes screw terminal connections and chassis mounting. Key electrical specifications include a maximum leakage current of 15 mA. Physical dimensions are 320 mm in length, 70 mm in width, and 110 mm in height. It operates within a temperature range of -25°C to +85°C and holds UL and CSA compliance certifications.

Feature Summary

• Dual-stage filtering architecture for enhanced noise suppression
• Chassis mount design with screw terminals for secure installation
• Certified for UL and CSA safety standards

Applications

• AC/DC Drives
• HVAC Systems
• Robotics
• UPS Systems

Procurement Notes

Verify the specific ordering suffix to ensure correct configuration, as variations may exist within the KEH series. Confirm that the component status aligns with project requirements, noting potential end-of-life indicators. Cross-reference the manufacturer part number with authorized distributor databases to validate authenticity and traceability before finalizing procurement decisions.

Selection Notes

Select this model when a three-phase solution with high current handling is required for sensitive equipment. Ensure the application environment falls within the specified operating temperature range. Verify that the chassis mounting style and physical dimensions fit the available enclosure space. Confirm compatibility with the system's voltage rating and terminal connection type.

Part Context

This component belongs to the KEH series of power line filters from TE Connectivity Corcom. The series is engineered for robust performance in demanding industrial environments. The specific model integrates dual-stage filtering to meet stringent EMC requirements while maintaining high current throughput for critical infrastructure.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer datasheet for direct replacements or updated series equivalents.
