Product Detailed Parameters
- Description：LINE FILTER 440VAC 42A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：42 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

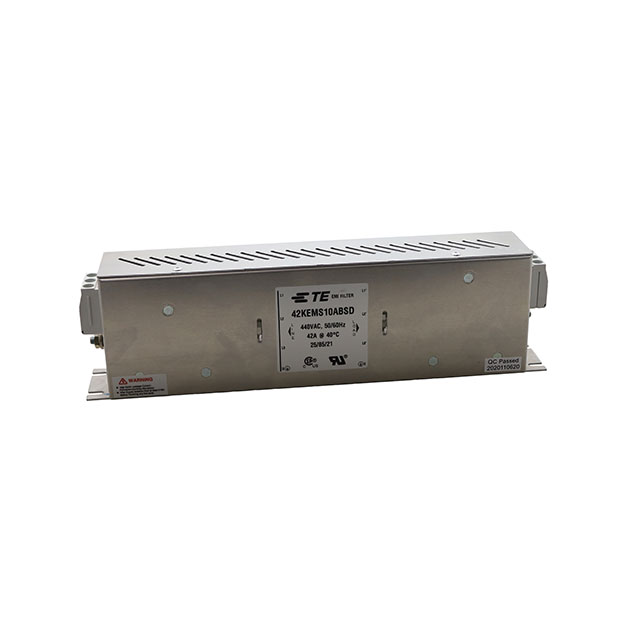

The 42KEMS10ABSD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a single-stage design rated for 440 VAC and 42 A current. The unit utilizes terminal block termination and chassis mount installation. Electrical specifications include a maximum leakage current of 15 mA and operation at 50 Hz or 60 Hz frequencies. Physical dimensions are 250 mm in length, 45 mm in width, and 85 mm in height. It operates within a temperature range of -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Single-stage electromagnetic interference mitigation for three-phase systems
- Terminal block connection interface for secure electrical integration
- Chassis mounting configuration for industrial enclosure installation
Applications
- Industrial power conditioning systems
- Three-phase equipment requiring EMC compliance
- Electrical enclosures with delta configuration requirements
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to discontinuation status. Confirm technical compatibility with existing system voltage and current ratings before procurement. Check for obsolescence notices regarding production end-of-life dates. Ensure replacement parts meet identical dimensional and electrical specifications for seamless integration into legacy infrastructure.
Selection Notes
Select this model for applications requiring 42 A capacity in three-phase delta configurations. Verify that the 15 mA leakage current meets safety standards for the specific installation environment. Ensure chassis mounting space accommodates the specified physical dimensions. Confirm terminal block compatibility with existing wiring harnesses and connection hardware.
Part Context
This component belongs to the KEM-BS series of power line filters designed for industrial environments. It addresses electromagnetic compatibility requirements for three-phase AC power distribution networks. The product represents a specialized solution for noise suppression in high-current industrial applications where standard filtering is insufficient.
Replacement Considerations
Public documentation indicates discontinuation. No verified substitute part numbers are confirmed in available sources. Evaluate alternative models from the same manufacturer series for equivalent electrical ratings and physical form factors.
