Product Detailed Parameters
- Description：LINE FILTER 520VAC 42A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：42 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

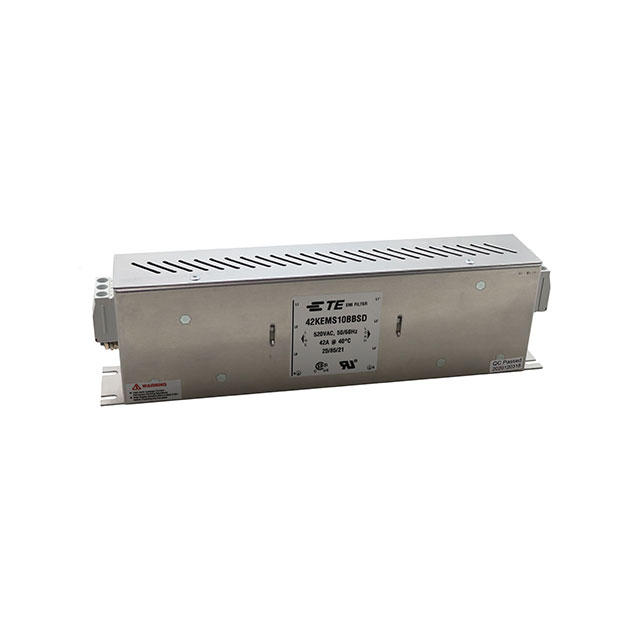

The TE Connectivity Corcom Filters 42KEMS10BBSD is a three-phase power line filter designed for industrial applications. It supports a current rating of 42 A and operates at voltages up to 520 VAC. The unit features a single-stage filtering configuration with terminal block input terminals. Designed for chassis mounting, it provides EMC/EMI suppression for three-phase delta systems operating at 50/60 Hz frequencies.
Feature Summary
- Three-phase EMC/EMI line filter construction
- Terminal block input interface
- Chassis mount design
Applications
- Industrial equipment power conditioning
- Three-phase delta system noise suppression
- EMC compliance in heavy machinery
Procurement Notes
Verify the exact suffix against official TE Connectivity documentation, as variations such as BBSDVM may indicate specific packaging or regional configurations. Confirm lead times and availability directly with authorized distributors, as stock levels fluctuate. Ensure the selected variant matches the required voltage and current specifications for the target application before ordering.
Selection Notes
Select this model for applications requiring robust three-phase filtering at 42 A. Ensure the installation environment supports chassis mounting and that the terminal block connection method aligns with the system wiring. Verify that the 520 VAC rating exceeds the maximum circuit voltage to ensure safe operation under all load conditions.
Part Context
This component belongs to the Corcom KEM series, which offers high-performance power line filters for demanding industrial environments. The series is engineered to meet stringent electromagnetic compatibility standards while handling significant current loads. The 42KEMS10BBSD represents a standard configuration within this range, focusing on reliable noise attenuation for three-phase power distribution networks.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Consult TE Connectivity technical support for direct equivalents or updated models if this specific part number is discontinued or unavailable.
