Product Detailed Parameters
- Description：LINE FILTER 520VAC 42A CHASS MNT
- Series：KEV-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：42 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

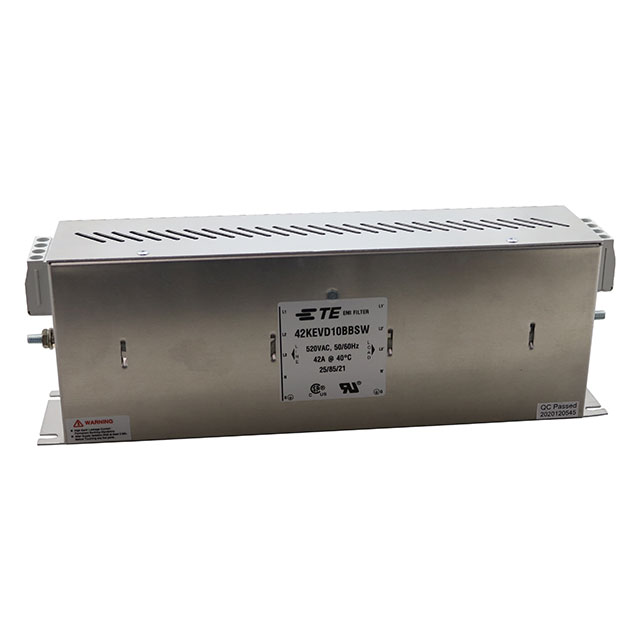

The TE Connectivity Corcom Filters model 42KEVD10BBSW is a three-phase (Wye) EMC/EMI line filter rated for 42 A and 520 VAC at 50/60 Hz. It features a two-stage filtering configuration designed to suppress electromagnetic interference. The unit utilizes terminal block connections for electrical interface and supports flange mounting for chassis installation.
Feature Summary
- Provides dual-stage attenuation for effective EMI/RFI suppression in three-phase power systems
- Engineered for general-purpose industrial applications requiring robust noise control
- Features terminal block termination for secure electrical connectivity
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise suppression
- General-purpose EMC compliance in Wye configurations
Procurement Notes
Verify the specific part number suffix against official TE Connectivity documentation to confirm exact terminal type and mounting style. Ensure the application voltage and current ratings align with system requirements before procurement. Cross-reference certification marks such as UL or CSA if required by local regulations.
Selection Notes
Select this component when a three-phase Wye configuration is required for 520 VAC systems operating at 42 A. The two-stage design offers enhanced filtering performance compared to single-stage alternatives. Confirm that terminal block termination suits the existing wiring infrastructure and that flange mounting fits the available chassis space.
Part Context
This component belongs to the KEV series of power line filters from TE Connectivity Corcom Filters. The series covers various current ratings and phase configurations for industrial EMC solutions. The 42KEVD10BBSW specifically addresses mid-range current requirements in three-phase environments.
Replacement Considerations
FN2080A-10-06 is listed as a similar substitute part number by TE Connectivity Schaffner. Verify compatibility regarding current rating, voltage, and physical dimensions before substitution.
