Product Detailed Parameters
- Description：CAP FEEDTHRU 200V AXIAL
- Series：4300
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial
- Size / Dimension：0.156" Dia x 0.110" L (3.96mm x 2.79mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：15dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

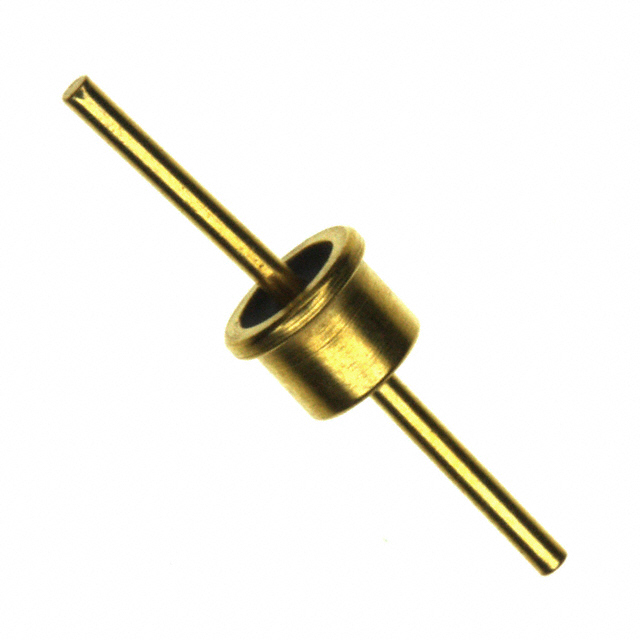

The 4300-001LF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 500 pF and a voltage rating of 200 V at 125°C. The component utilizes an axial package configuration and operates within a temperature range of -55°C to +125°C. It is classified as an electromagnetic interference filter designed for suppression applications.
Feature Summary
- Provides electromagnetic interference (EMI) and radio frequency interference (RFI) suppression
- Designed for power line filtering applications
- Utilizes axial leaded packaging for circuit integration
Applications
- EMI/RFI suppression in electronic systems
- Power line filtering
- Electromagnetic interference mitigation
Procurement Notes
Verify the manufacturer part number 4300-001LF against official Tusonix or CTS documentation to confirm specifications. Ensure compatibility with required voltage ratings and temperature ranges. Check RoHS compliance status through official datasheets. Confirm package type and lead configuration match design requirements before procurement.
Selection Notes
Select this component based on the specific requirement for 500 pF capacitance and 200 V voltage rating. Consider the axial package form factor for board layout constraints. Evaluate the operating temperature range of -55°C to +125°C against environmental conditions. Verify that the EMI suppression characteristics meet system noise immunity standards.
Part Context
This component belongs to the 4300 series of EMI feedthrough filters from Tusonix. The series includes various capacitance and voltage ratings tailored for different filtering needs. The 4300-001LF represents a specific variant optimized for moderate capacitance and voltage levels in axial configurations.
Replacement Considerations
Consult official Tusonix or CTS cross-reference guides for verified substitute part numbers. Do not assume interchangeability with other series without checking electrical parameters and physical dimensions.
