Product Detailed Parameters
- Description：CAP FEEDTHRU 100V AXIAL
- Series：4300
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：100V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial
- Size / Dimension：0.156" Dia x 0.110" L (3.96mm x 2.79mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：30dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

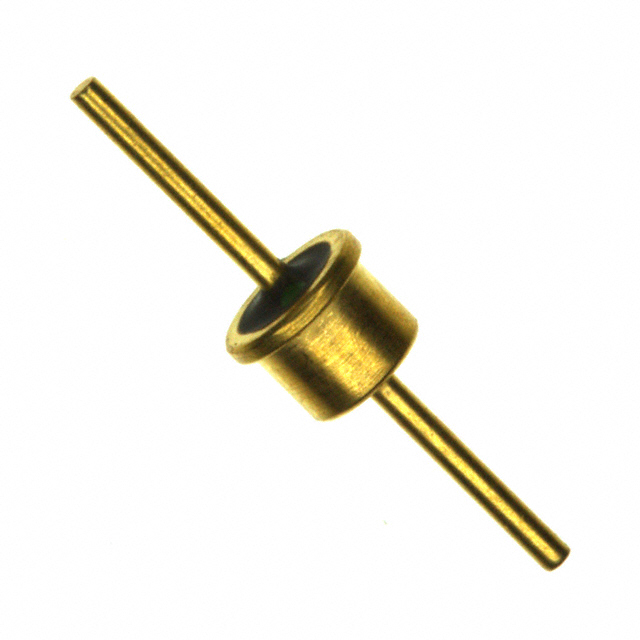

The Tusonix 4300-004LF is an axial feed-through capacitor designed for electromagnetic interference (EMI) filtering. It features a capacitance of 5 nF and a rated voltage of 100 V. The component supports a maximum DC current of 5 A and operates within a temperature range of -55°C to +125°C. It utilizes a C-filter circuit topology and is supplied in bulk packaging.
Feature Summary
- Provides EMI suppression through axial feed-through architecture
- Supports high DC current loads up to 5 A
- Operates reliably across extended industrial temperature ranges
Applications
- Electromagnetic interference filtering in electronic circuits
- Power line conditioning for sensitive equipment
- Signal integrity protection in industrial control systems
Procurement Notes
Verify the specific suffix designation, as 'LF' typically indicates lead-free compliance which may differ from non-LF variants. Confirm RoHS status and REACH SVHC declarations against current regulatory requirements. Ensure the axial package dimensions match the PCB layout constraints. Validate the 5 A current rating against the actual application load to prevent thermal issues.
Selection Notes
Select this component when a 5 nF capacitance value is required for EMI attenuation at 100 V. The axial form factor suits through-hole mounting applications. Consider the 5 A current handling capability for power line applications. Verify that the operating temperature range meets the environmental conditions of the target system.
Part Context
This part belongs to the Tusonix 4300 series of feed-through capacitors. These components are engineered for robust EMI/RFI suppression in demanding environments. The series offers various capacitance and voltage ratings to suit different filtering needs while maintaining consistent physical and electrical performance characteristics.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching capacitance, voltage, current rating, and package type with alternative manufacturers.
