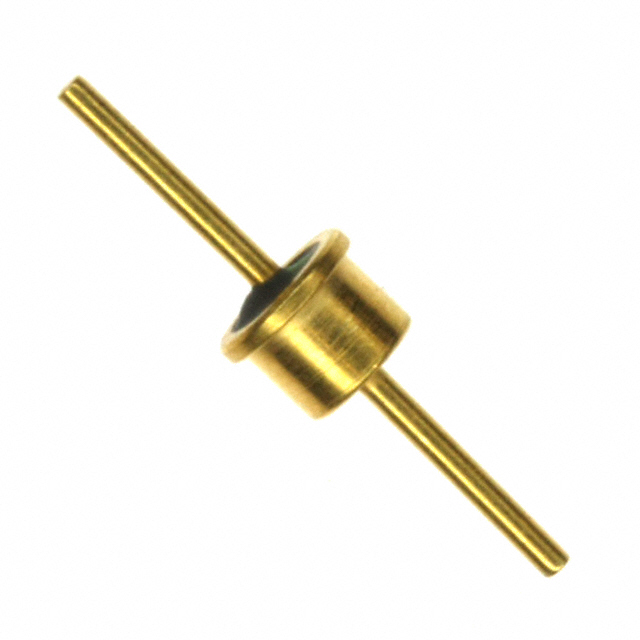

4300-006LF

$21.28

Description：FILTER EMI 15000 PF C TYPE
Series：4300
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:9decbb1853bf Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER EMI 15000 PF C TYPE
Series：4300
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：-
Current：5:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial
Size / Dimension：0.156" Dia x 0.110" L (3.96mm x 2.79mm)
Capacitance：0.015 µF
Tolerance：-
DC Resistance (DCR) (Max)：-
Insertion Loss：-
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

4300-006LF

Overview

The 4300-006LF is a feed-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 15000 pF with a voltage rating of 200V and a maximum current rating of 5A. The component utilizes an axial package configuration and operates within a temperature range of -55°C to +125°C. It provides an insertion loss of 20dB at 100MHz. The device is classified as a C-type filter circuit.

Feature Summary

Provides high-capacitance EMI/RFI filtering via a three-terminal feed-through architecture
Supports continuous DC current up to 5A for robust power line applications
Ensures reliable operation across extended industrial temperature ranges

Applications

Electromagnetic interference suppression in electronic equipment
Power supply input filtering for sensitive circuits
Signal integrity protection in communication systems

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm compliance status and exact electrical tolerances. Confirm that the axial lead configuration matches the target PCB layout requirements. Ensure the selected variant aligns with the required insulation resistance and maximum voltage ratings for the intended operational environment.

Selection Notes

Select this component when high capacitance values are required for low-frequency noise attenuation in power lines. The axial form factor facilitates through-hole mounting on standard printed circuit boards. Evaluate the 200V rating and 5A current capacity to ensure compatibility with the system's electrical parameters before integration into the design.

Part Context

This part belongs to the 4300 series of feed-through capacitors designed for EMC applications. The series offers various capacitance values and voltage ratings to address different filtering needs. Tusonix specializes in these components to support electromagnetic compatibility standards in diverse electronic industries.
