4300-014LF

Overview

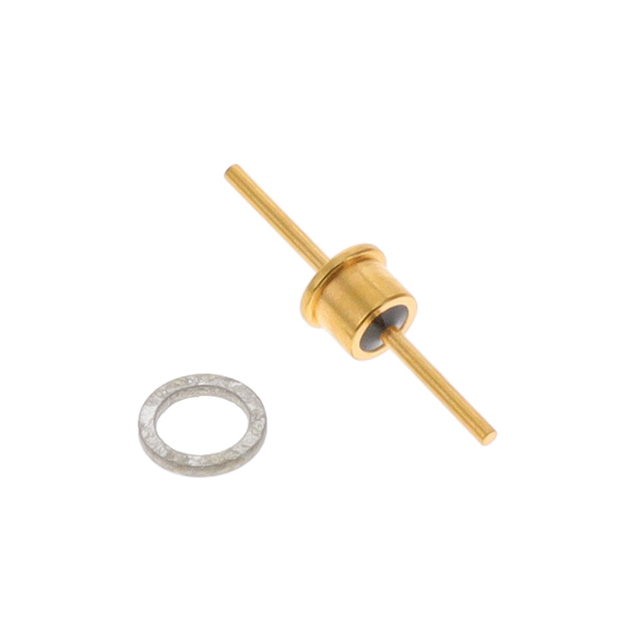

The 4300-014LF is a feedthrough capacitor from the Tusonix 4300 series, designed for electromagnetic interference (EMI) filtering. It features a capacitance of 50,000 pF with a GMV tolerance and a rated voltage of 50 V at 125°C. The component utilizes an axial package configuration and supports a current rating of 5 A. It provides an insertion loss of 45 dB at 100 MHz. The operating temperature range spans from -55°C to +125°C. The unit complies with RoHS3 standards and carries an EAR99 classification.

Feature Summary

• Provides high-capacitance EMI suppression through feedthrough architecture
• Supports axial mounting for direct wire integration
• Maintains performance across extended industrial temperature ranges

Applications

• Electromagnetic interference filtering in electronic circuits
• Power line conditioning for sensitive equipment
• Signal integrity protection in communication systems

Procurement Notes

Verify the specific suffix requirements against the manufacturer's official datasheet to ensure correct termination and environmental ratings. Confirm that the axial package dimensions align with the target PCB or chassis layout constraints. Check for any updated compliance certifications such as REACH status prior to finalizing procurement specifications.

Selection Notes

Select this component when high capacitance values are required for low-frequency noise attenuation in axial configurations. Ensure the 50 V rating meets the circuit's maximum operating voltage including transients. Verify that the 5 A current handling capability exceeds the application's peak load requirements without exceeding thermal limits.

Part Context

This part belongs to the Tusonix 4300 series of feedthrough capacitors manufactured by CTS Electronic Components. The series offers various capacitance and voltage combinations within an axial form factor. These components are engineered for robust EMI suppression in demanding environments, serving as critical passive elements in filter networks.

Replacement Considerations

Direct substitutes include other 4300 series variants with matching electrical parameters. Verify pin compatibility and physical dimensions before replacing. Consult the manufacturer's cross-reference guide for equivalent parts with identical insertion loss and voltage ratings.
