4300-020LF

Overview

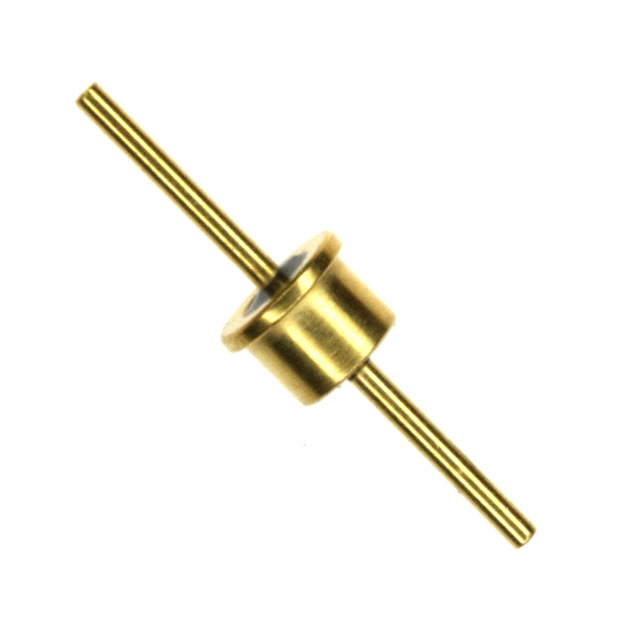

The Tusonix 4300-020LF is a feed-through capacitor with a capacitance of 1200 pF and a rated voltage of 200V. It features an axial package, operates within a temperature range of -55°C to +125°C, and provides an insertion loss of 3dB at 100MHz. The component has a physical size of 3.96mm diameter by 2.79mm length.

Feature Summary

• C-type circuit topology for EMI filtering
• Gold terminal finish for corrosion resistance
• Axial leaded package design

Applications

• Electromagnetic interference suppression in electronic circuits
• Power line filtering applications
• Signal line noise reduction

Procurement Notes

Verify the specific suffix requirements for RoHS compliance and terminal finish when ordering. Confirm that the axial package dimensions match your PCB layout constraints. Ensure the 200V rating and 1200pF capacitance align with your circuit design specifications before procurement.

Selection Notes

Select this component for applications requiring axial mounting and C-type circuit performance. Consider the 200V rating and 1200pF value for appropriate filtering needs. Verify compatibility with operating temperatures up to 125°C and ensure the 3dB insertion loss meets system requirements.

Part Context

Part of the Tusonix 4300 series feed-through capacitors. Designed for EMI/RFI suppression in various electronic systems. Offers reliable performance in demanding environments with a wide operating temperature range.

Replacement Considerations

Check for direct substitutes within the 4300 series or equivalent axial feed-through capacitors from other manufacturers. Ensure matching electrical parameters such as capacitance, voltage rating, and insertion loss characteristics.

FAQ

What is the insertion loss specification?

The insertion loss is 3dB at 100MHz.

What is the terminal finish?

The terminals are finished with gold (Au).
