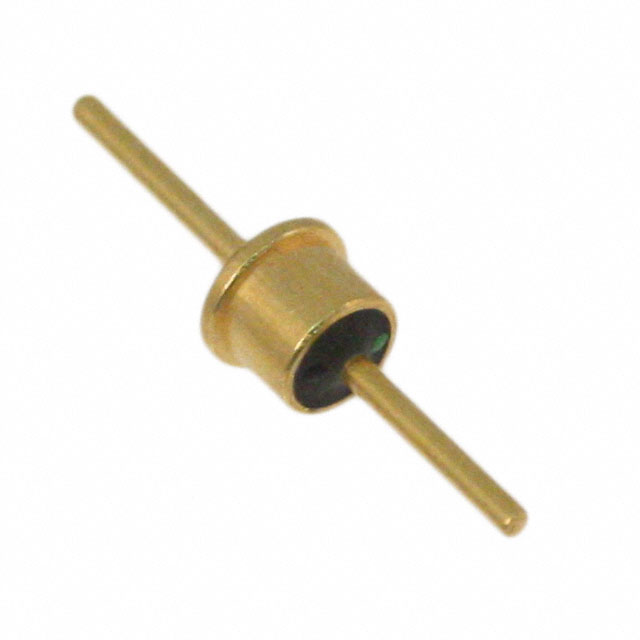

4300-024LF

$21.28

Description：CAP FEEDTHRU 100V AXIAL
Series：4300
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:540d7b347dbf Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 100V AXIAL
Series：4300
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：100V
Current：5:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial
Size / Dimension：0.156" Dia x 0.110" L (3.96mm x 2.79mm)
Capacitance：-
Tolerance：-
DC Resistance (DCR) (Max)：-
Insertion Loss：30dB @ 100MHz
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

4300-024LF

Overview

The 4300-024LF is an axial lead EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 5 nF (5000 pF) and a voltage rating of 100 V at 125°C. The component operates within a temperature range of -55°C to +125°C. Its physical dimensions include a diameter of 0.156 inches. The device is designed for high-frequency noise suppression in electronic circuits.

Feature Summary

Provides effective electromagnetic interference suppression through feedthrough capacitor technology
Supports continuous operation across a wide industrial temperature range from -55°C to +125°C
Features axial lead configuration for straightforward circuit board integration

Applications

High-frequency noise filtering in electronic power supplies
EMI suppression in communication equipment signal lines
Noise reduction in sensitive analog circuit interfaces

Procurement Notes

Verify the manufacturer part number 4300-024LF against official Tusonix or CTS documentation to ensure authenticity. Confirm that the specified 100V rating and 5nF capacitance match your design requirements. Check for RoHS compliance status as indicated in current datasheets before finalizing procurement orders.

Selection Notes

Select this component when a 5nF capacitance value is required for EMI filtering applications. Ensure the circuit environment does not exceed the 100V maximum voltage rating. Verify that the axial package style fits the available PCB space and mounting constraints of the target assembly.

Part Context

This component belongs to the 4300 series of feedthrough capacitors produced by Tusonix. The series is characterized by axial leaded packages designed for robust EMI performance. These components are widely used in industrial and commercial electronics requiring reliable noise attenuation.
