4300-034LF

Overview

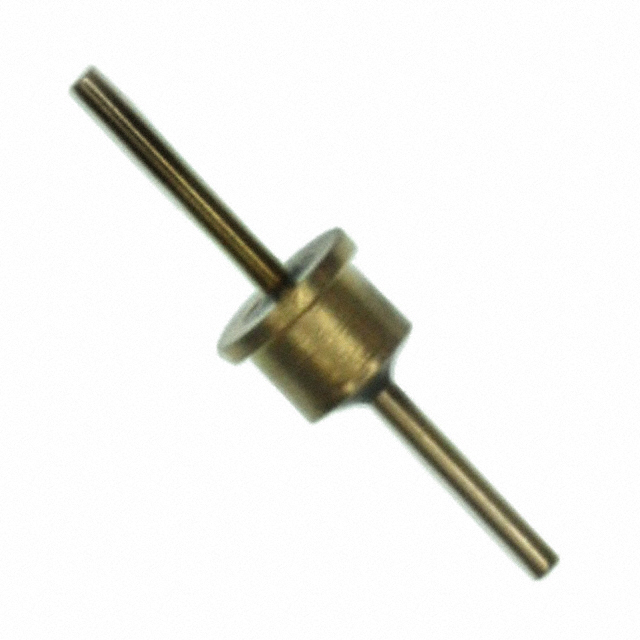

The Tusonix 4300-034LF is an axial lead EMI feedthrough capacitor with a capacitance of 50 nF and a rated voltage of 50 V. It supports a maximum DC current of 5 A and operates within a temperature range of -55°C to +125°C. The component measures 0.156 inches in diameter by 0.110 inches in length (3.96 mm x 2.79 mm). It is RoHS3 compliant, classified under EAR99, and has a Moisture Sensitivity Level of 1.

Feature Summary

• Provides effective electromagnetic interference suppression through axial feedthrough architecture.

Applications

• EMI/RFI suppression circuits
• Power line filtering

Procurement Notes

Verify the specific suffix 'LF' confirms RoHS3 compliance status against the manufacturer's latest documentation. Confirm that the axial package dimensions match the panel cutout requirements for the intended installation. Ensure the 50 V rating and 5 A current capacity are sufficient for the target circuit conditions.

Selection Notes

Select this component when a low-profile axial feedthrough design is required for 50 V applications. The 50 nF value offers specific attenuation characteristics suitable for targeted frequency ranges. Verify compatibility with operating temperatures up to 125°C.

Part Context

This part belongs to the Tusonix 4300 series of EMI feedthrough filters. The series provides various capacitance values and voltage ratings in an axial package format designed for direct panel mounting or wire-to-panel connections.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data.
