Product Detailed Parameters
- Description：CAP FEEDTHRU 100PF 200V AXIAL
- Series：4304
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Press Fit
- Size / Dimension：0.156" Dia x 0.110" L (3.96mm x 2.79mm)
- Capacitance：100 pF
- Tolerance：0%, +100%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：3dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

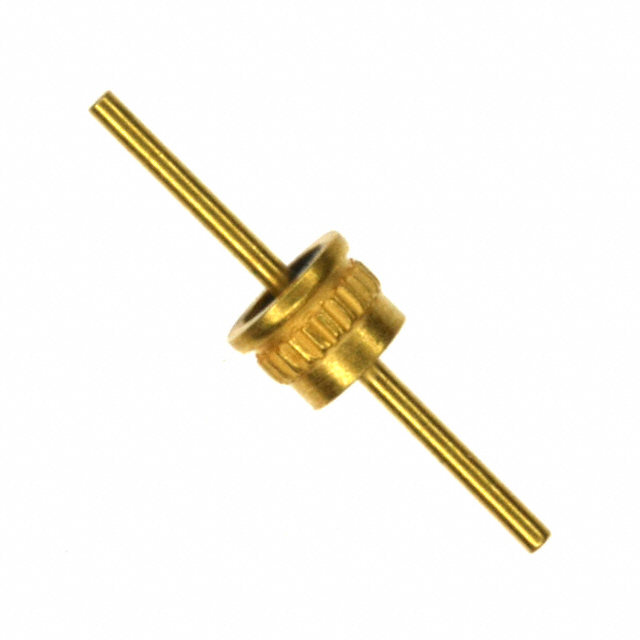

The 4304-003LF is an EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 100 pF with a voltage rating of 200 V. The component operates within a temperature range of -55°C to +125°C and utilizes an axial package configuration.
Feature Summary
- Provides electromagnetic interference suppression through feedthrough filtering architecture
- Designed for high-voltage applications up to 200 V
- Capable of operation in extreme temperatures from -55°C to +125°C
Applications
- Electromagnetic interference (EMI) filtering in electronic circuits
- Power supply line conditioning
- Signal integrity protection in sensitive equipment
Procurement Notes
Verify the specific manufacturer part number against official distributor catalogs to ensure authenticity. Confirm RoHS compliance status as indicated in current datasheets. Check for any lead-free specifications required by your assembly process. Ensure the axial package dimensions match your PCB layout constraints before finalizing procurement orders.
Selection Notes
Select this component when a low capacitance value of 100 pF is required for high-frequency noise attenuation. The 200 V rating makes it suitable for medium-voltage DC or AC lines. Consider the axial form factor for through-hole mounting where space allows for linear component placement along the circuit board axis.
Part Context
This component belongs to the 4304 series of EMI feedthrough filters produced by Tusonix/CTS. These capacitors are engineered to suppress radio frequency interference while maintaining signal integrity. The series offers various capacitance values and voltage ratings to suit different filtering requirements across industrial and commercial electronics.
Replacement Considerations
Consult official Tusonix/CTS documentation for verified cross-reference part numbers. Ensure any substitute maintains identical capacitance, voltage rating, and package dimensions. Verify that alternative components meet the same temperature operating range and EMI performance specifications.
