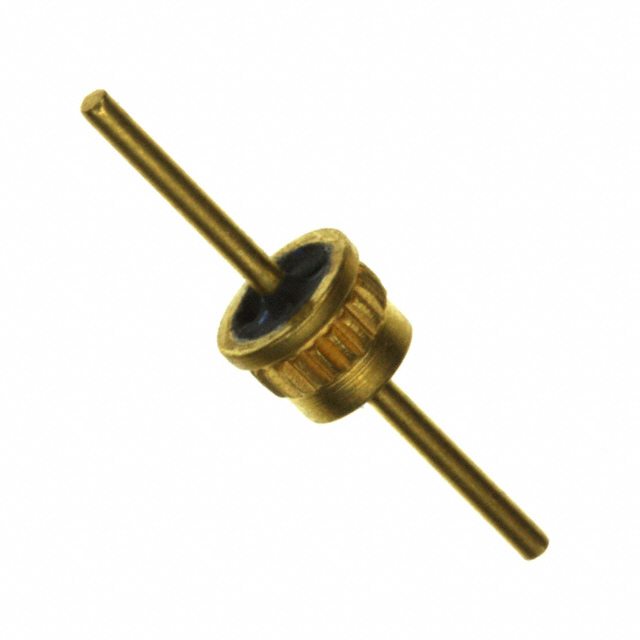

4304-011LF

Description：CAP FEEDTHRU 0.05UF 50V AXIAL
Series：4304
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:c3d76e623bb8 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 0.05UF 50V AXIAL
Series：4304
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：50V
Current：5:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial, Press Fit
Size / Dimension：0.156" Dia x 0.110" L (3.96mm x 2.79mm)
Capacitance：0.05 µF
Tolerance：0%, +100%
DC Resistance (DCR) (Max)：-
Insertion Loss：45dB @ 100MHz
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

4304-011LF

Overview

The 4304-011LF is an EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 0.05 µF (50 nF) and a voltage rating of 50 V. The component utilizes an axial leaded package design suitable for press-fit mounting applications. It operates within a temperature range of -55°C to +125°C. The device is RoHS compliant and belongs to the 4304 series of electromagnetic interference filters.

Feature Summary

Provides effective electromagnetic interference suppression through feedthrough filtering technology
Features an axial leaded configuration designed for secure press-fit installation
Maintains operational stability across a wide industrial temperature spectrum

Applications

Electromagnetic interference filtering in electronic circuits
Power supply line conditioning
Signal integrity protection in sensitive equipment

Procurement Notes

Verify the specific capacitance value of 0.05 µF and the 50 V rating against project requirements. Confirm the axial leaded package type matches the intended press-fit mounting method. Ensure compliance with RoHS standards if required by the target application environment. Check manufacturer documentation for precise mechanical dimensions and thermal characteristics.

Selection Notes

Select this component when a 50 nF feedthrough filter is required for 50 V circuits. The axial form factor supports direct board penetration or panel mounting via press-fit techniques. Consider the operating temperature range of -55°C to +125°C for environmental suitability. Compare against other series members if different capacitance values are needed.

Part Context

This part belongs to the 4304 series of EMI feedthrough filters from Tusonix/CTS. The series offers various capacitance and voltage combinations. The 4304-011LF specifically addresses mid-range filtering needs with its 0.05 µF rating. It shares the series' general construction principles but differs in electrical specifications from other variants like the 4304-000LF.
