4306-006LF

Overview

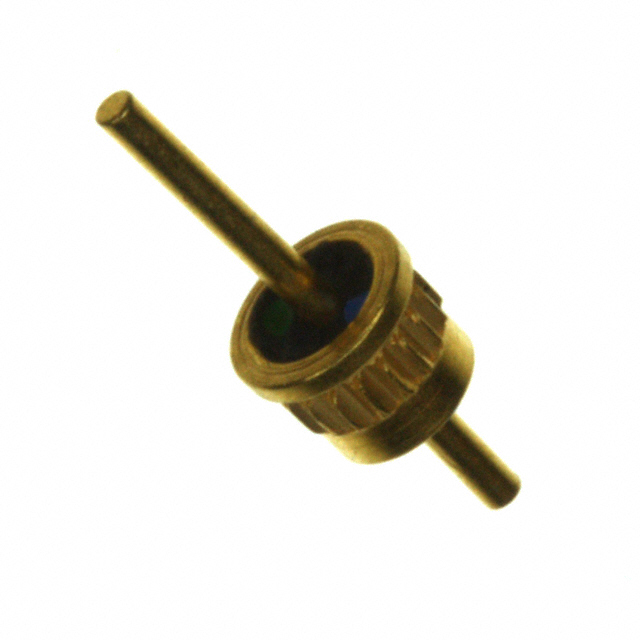

The 4306-006LF is a feedthrough capacitor from the Tusonix 4306 series, designed for EMI/RFI suppression. It features a capacitance of 25 pF with a tolerance of 0% to +100%. Rated for 200 V DC and 5 A current, it operates within a temperature range of -55°C to +125°C. The component utilizes an axial, press-fit package with dimensions of 0.146 inches in diameter and 0.110 inches in length (3.71 mm x 2.79 mm). It provides insertion loss of 25 dB at 100 MHz.

Feature Summary

• Provides effective electromagnetic interference filtering through high-current feedthrough architecture
• Utilizes axial press-fit mounting for secure chassis panel integration
• Maintains stable electrical performance across extended industrial temperature ranges

Applications

• Chassis-mounted power line filtering
• High-frequency noise suppression in electronic enclosures
• Signal integrity protection in industrial control systems

Procurement Notes

Verify RoHS compliance status as documentation indicates potential non-compliance for this specific part number. Confirm lead times directly with the manufacturer or authorized distributors, as standard delivery periods may vary. Ensure the axial press-fit mounting method aligns with your chassis design requirements before procurement.

Selection Notes

Select this component when low capacitance values are required for high-frequency attenuation alongside moderate current handling capabilities. The axial form factor suits applications requiring direct panel penetration. Compare against similar series parts if higher current ratings or different capacitance tolerances are needed for specific circuit constraints.

Part Context

This component belongs to the Tusonix 4306 series of feedthrough capacitors, manufactured by CTS Electronic Components. The series is characterized by robust construction suitable for harsh environments. These components serve as critical passive filters in circuits demanding reliable EMI reduction without significant signal degradation.

Replacement Considerations

Direct substitutes include other 25 pF, 200 V axial feedthrough capacitors from Tusonix such as the 4306-005LF or 4306-007LF, provided they match the press-fit mechanical interface and current rating specifications.
