4306-009LF

Overview

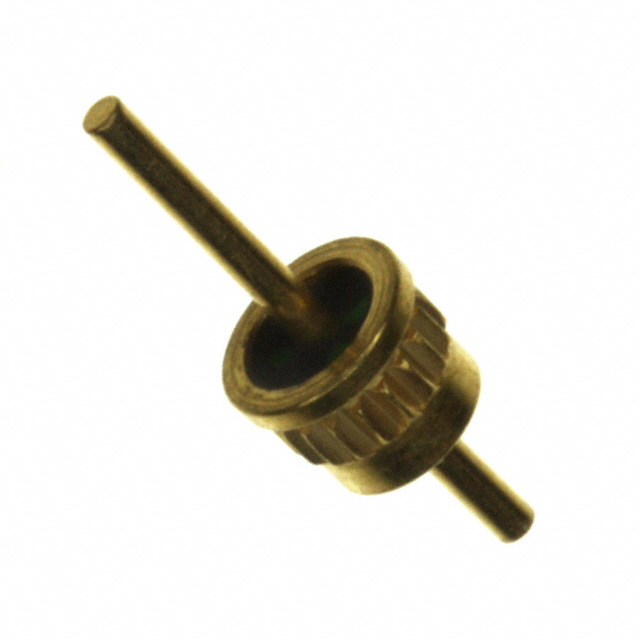

The 4306-009LF is a feedthrough capacitor from the Tusonix 4306 series, rated at 1500 pF capacitance and 200 V. It supports a maximum current of 5 A with a tolerance of 0% to +100%. Operating within -55°C to +125°C, it features axial press-fit packaging measuring 0.146 inches in diameter by 0.110 inches in length. The component provides 22 dB insertion loss at 100 MHz.

Feature Summary

• Provides electromagnetic interference suppression through high-capacitance feedthrough design
• Utilizes axial press-fit mounting for secure panel integration
• Maintains stable electrical performance across extended industrial temperature ranges

Applications

• Electromagnetic interference filtering in electronic enclosures
• Power supply input/output conditioning circuits
• Signal line noise reduction in sensitive instrumentation

Procurement Notes

Verify manufacturer part number accuracy against official Tusonix documentation. Confirm RoHS compliance status as source data indicates non-compliance for the base 4306-009 variant; ensure the LF suffix aligns with project environmental requirements. Validate mechanical dimensions and press-fit specifications against enclosure design constraints before procurement.

Selection Notes

Select this component when 1500 pF capacitance and 200 V rating are required for EMI suppression. The axial press-fit form factor suits panel-mounted applications where robust mechanical connection is necessary. Consider the 5 A current limit and operating temperature range to ensure compatibility with system thermal and electrical loads.

Part Context

This component belongs to the Tusonix 4306 series of feedthrough capacitors, designed for EMI filtering. The series offers various capacitance values and voltage ratings, all sharing similar axial press-fit construction. These components are engineered for reliable noise attenuation in demanding electronic environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference options directly with the manufacturer or authorized distributors to ensure equivalent electrical and mechanical specifications.
