Product Detailed Parameters
- Description：CAP FEEDTHRU 0.01UF 50V AXIAL
- Series：4306
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：50V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Press Fit
- Size / Dimension：0.146" Dia x 0.110" L (3.71mm x 2.79mm)
- Capacitance：10000 pF
- Tolerance：0%, +100%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：35dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

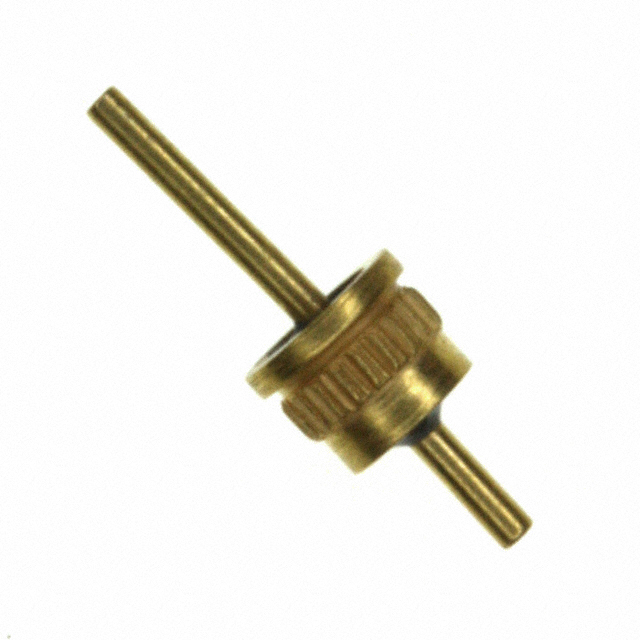

The 4306-010LF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features an axial leaded package designed for press-fit or solder mounting applications. The component provides a capacitance value of 0.01 µF with a voltage rating of 50V. It supports a maximum current of 5 A and operates within a temperature range of -55°C to +125°C.
Feature Summary
- Provides electromagnetic interference (EMI) suppression through feedthrough filtering architecture
- Utilizes an axial leaded configuration suitable for panel or chassis mounting
- Maintains electrical stability across a wide industrial temperature spectrum
Applications
- Electronic equipment requiring EMI noise reduction in power lines
- Industrial control systems utilizing axial feedthrough filter components
- Chassis-mounted filtering applications for sensitive electronic circuits
Procurement Notes
Verify the specific manufacturer part number against official Tusonix or CTS documentation to confirm active status and exact specifications. Ensure compatibility with required mounting methods and environmental conditions before procurement. Cross-reference datasheets for precise electrical characteristics and mechanical dimensions.
Selection Notes
Select this component when a 0.01 µF capacitance at 50V is required for EMI filtering in axial configurations. Consider the 5 A current rating and -55°C to +125°C operating range for suitability in industrial environments. Verify that the axial lead style matches the intended board or panel mounting requirements.
Part Context
This component belongs to the 4306 series of EMI feedthrough filters produced by Tusonix. The series offers various capacitance and voltage ratings tailored for different filtering needs. These filters are commonly used in applications demanding robust noise suppression in compact axial packages.
Replacement Considerations
Publicly confirmed substitute part numbers for the 4306-010LF were not identified in the provided source material. Consult official manufacturer documentation for verified cross-references.
