4306-011LF

Overview

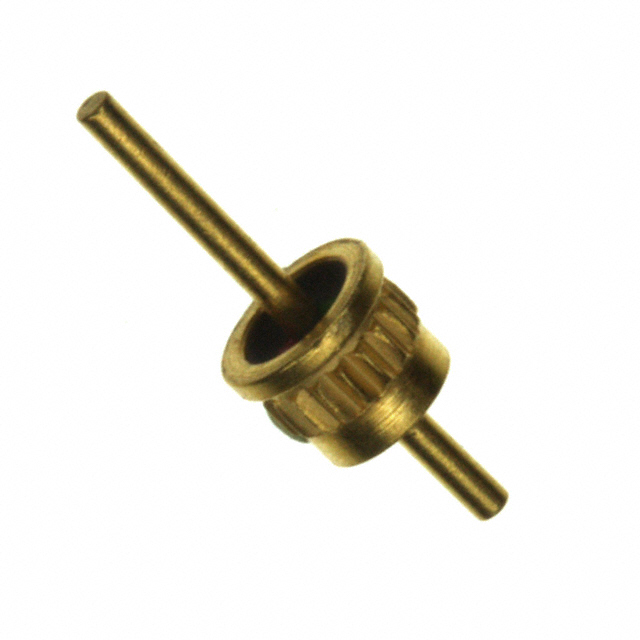

The 4306-011LF is an axial feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 0.027 µF with a voltage rating of 50V and a maximum DC current handling of 5 A. The component utilizes a press-fit mounting style and operates within a temperature range of -55°C to +125°C. Its physical dimensions are characterized by an axial lead configuration designed for panel or chassis integration.

Feature Summary

• Provides electromagnetic interference suppression through axial feedthrough architecture
• Supports direct press-fit installation for secure mechanical attachment
• Maintains operational stability across extended industrial temperature ranges

Applications

• Electromagnetic interference filtering in electronic assemblies
• Power line conditioning for low-voltage circuits
• Signal integrity protection in communication equipment

Procurement Notes

Verify the specific suffix requirements against the manufacturer's latest datasheet to ensure compliance with RoHS standards and material specifications. Confirm that the press-fit mounting method aligns with your panel thickness and hole tolerance constraints before finalizing procurement orders.

Selection Notes

Select this component when a compact axial feedthrough solution is required for 50V applications. Ensure the 5 A current rating meets the circuit's peak load requirements. Verify that the press-fit mechanical interface is compatible with the designated chassis or panel mounting holes.

Part Context

This part belongs to the 4306 series of feedthrough capacitors from Tusonix. The series offers various capacitance values and voltage ratings tailored for EMI suppression. The 4306-011LF specifically addresses needs for moderate capacitance in low-voltage axial configurations.

Replacement Considerations

Consult official substitution guides for equivalent axial feedthrough capacitors with matching 0.027 µF capacitance and 50V ratings. Verify dimensional compatibility for press-fit mounting when considering alternative manufacturers.
