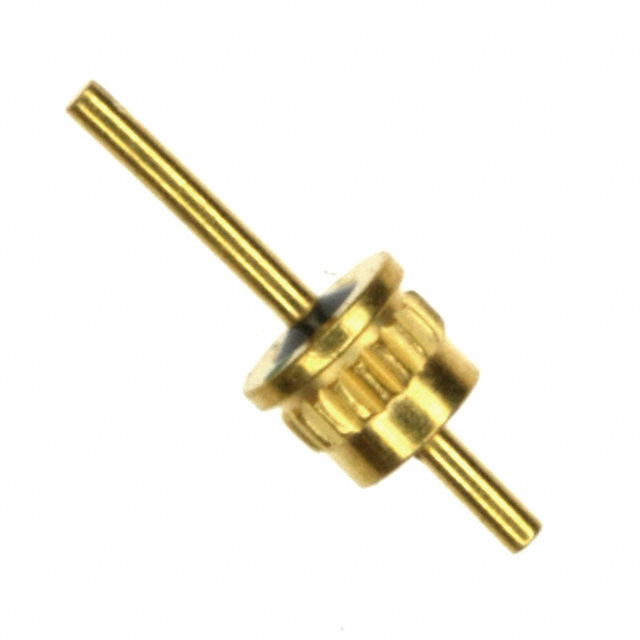

4306-014LF

$21.28

Description：CAP FEEDTHRU 100PF 200V AXIAL
Series：4306
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:19cac394a393 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 100PF 200V AXIAL
Series：4306
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：200V
Current：5:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial, Press Fit
Size / Dimension：0.146" Dia x 0.110" L (3.71mm x 2.79mm)
Capacitance：100 pF
Tolerance：0%, +100%
DC Resistance (DCR) (Max)：-
Insertion Loss：3dB @ 100MHz
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

4306-014LF

Overview

The 4306-014LF is an EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 100 pF and a voltage rating of 200 V at 125°C. The component utilizes an axial, press-fit package with dimensions of 0.146 inches in diameter and 0.11 inches in height. It operates within a temperature range of -55°C to +125°C and complies with RoHS standards.

Feature Summary

Provides electromagnetic interference suppression through high-frequency signal attenuation via feedthrough capacitor technology.
Designed for panel mounting using a press-fit installation method for secure mechanical attachment.

Applications

Electronic equipment requiring EMI filtering
Power supply input/output stages
Signal line protection in sensitive circuits

Procurement Notes

Verify the specific suffix requirements against the official datasheet to ensure correct termination and voltage ratings. Confirm that the axial press-fit form factor aligns with the target panel thickness and hole specifications. Check current availability status as distribution may vary by region.

Selection Notes

Select this component when a low capacitance value of 100 pF is required for high-voltage applications up to 200 V. Ensure the operating environment stays within the specified -55°C to +125°C range. Verify that the axial geometry fits the available board or panel space constraints.

Part Context

This part belongs to the 4306 series of feedthrough capacitors from Tusonix/CTS. These components are engineered for robust EMI suppression in industrial and commercial electronics. The series offers various capacitance values and voltage ratings to suit different filtering needs.
