4306-015LF

Overview

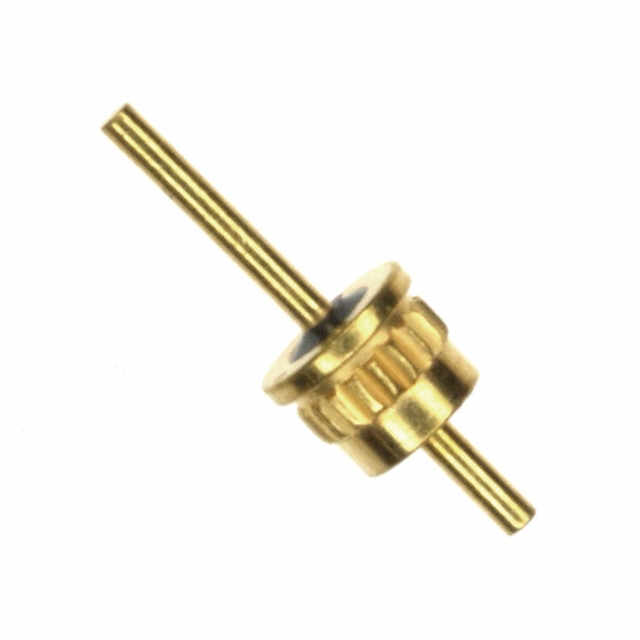

The 4306-015LF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 2700 pF with a tolerance range of 0% to +100%. The component is rated for a maximum voltage of 100V and supports a continuous current of 5 A. It operates within a temperature range of -55°C to +125°C. The unit utilizes an axial, crimp-mount package with dimensions of 3.71mm diameter by 2.79mm length. Insertion loss is specified at 25dB @ 100MHz.

Feature Summary

• Provides electromagnetic interference filtering through feedthrough capacitor technology
• Designed for axial mounting using a crimp-style termination method
• Capable of handling high DC currents up to 5 Amperes
• Operates reliably across extended industrial temperature ranges

Applications

• Electromagnetic interference suppression in electronic circuits
• Power line filtering for sensitive equipment
• Signal integrity protection in communication systems

Procurement Notes

Verify the specific axial crimp-mount configuration against mechanical constraints before integration. Confirm that the 0% to +100% capacitance tolerance aligns with circuit requirements. Ensure the 100V rating and 5A current capacity meet system operational limits. Check RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this component when axial feedthrough topology is required for compact EMI filtering. Consider the 2700 pF value and 100V rating for appropriate frequency and voltage applications. Evaluate the crimp-mount installation method against available board space and assembly tools. Compare insertion loss characteristics with alternative series if higher attenuation is needed.

Part Context

This part belongs to the 4306 series of feedthrough capacitors from Tusonix. It is distinct from other series like 4702 or 4205 due to its specific axial form factor and crimp-mount design. The product line focuses on providing robust EMI suppression solutions for various industrial and commercial applications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and circuit parameters before considering alternative components.
