4306-016LF

Overview

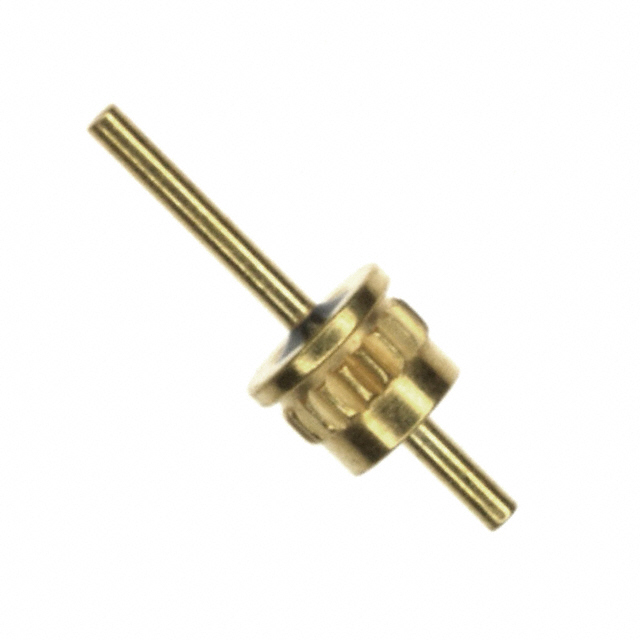

The Tusonix 4306-016LF is a feedthrough capacitor with a capacitance of 500 pF and a rated voltage of 200 V. It features an axial, crimp-mount package designed for EMI suppression. The component supports a maximum current of 5 A and operates within a temperature range of -55°C to +125°C. Its physical dimensions are 0.146 inches in diameter by 0.110 inches in length (3.71 mm x 2.79 mm).

Feature Summary

• Provides effective electromagnetic interference filtering through a feedthrough architecture.
• Designed for secure installation using a crimp-mount axial package configuration.
• Capable of handling high direct current loads up to 5 Amperes.

Applications

• Power supply input filtering
• Electronic equipment chassis grounding
• Signal line noise suppression

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm compliance requirements and material specifications. Ensure that the crimp-mount mechanical interface matches the intended panel thickness and mounting hardware constraints before finalizing procurement orders.

Selection Notes

Select this component when a compact axial feedthrough solution is required for 200 V applications. Consider the 500 pF capacitance value for high-frequency noise attenuation needs. Verify that the crimp-mount style aligns with the available assembly tools and panel preparation capabilities.

Part Context

This part belongs to the 4306 series of feedthrough capacitors manufactured by Tusonix, a subsidiary of CTS Electronic Components. The series is characterized by axial lead configurations suitable for panel mounting. These components are engineered for robust EMI/RFI suppression in demanding electronic environments.

Replacement Considerations

Consult official cross-reference data for verified substitute part numbers. Ensure that any replacement maintains identical electrical ratings, including capacitance, voltage, and current limits, as well as compatible mechanical mounting dimensions.
