4306-017LF

Overview

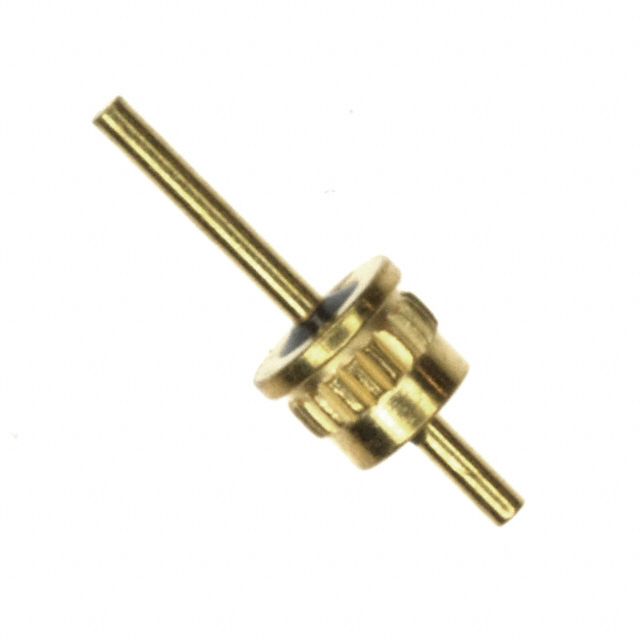

The 4306-017LF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 5000 pF and a rated voltage of 100V. The component supports a maximum DC current of 5 A and utilizes an axial press-fit mounting style. Designed for robust performance, it operates within a temperature range of -55°C to +125°C. The unit complies with RoHS3 standards and carries an EAR99 classification.

Feature Summary

• Provides electromagnetic interference filtering through a feedthrough capacitor design
• Utilizes an axial configuration suitable for press-fit installation methods
• Maintains operational stability across a wide industrial temperature spectrum

Applications

• Electromagnetic interference suppression in electronic circuits
• Power line filtering for high-current applications
• Signal integrity protection in communication systems

Procurement Notes

Verify the specific suffix requirements against official datasheets to ensure correct termination and compliance specifications. Confirm that the axial press-fit form factor aligns with the target panel or chassis mounting holes. Check for updated environmental declarations such as RoHS3 status prior to finalizing procurement orders.

Selection Notes

Select this component when a 5000 pF capacitance value is required for EMI mitigation at 100V ratings. Ensure the circuit design accommodates the 5 A current handling capability without exceeding thermal limits. Verify that the physical dimensions of the axial package fit the available space for press-fit assembly.

Part Context

This part belongs to the 4306 series of feedthrough capacitors from Tusonix. These components are engineered for high-reliability environments requiring effective noise reduction. The series offers various capacitance values tailored for different filtering needs while maintaining consistent mechanical and electrical characteristics.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Cross-reference key parameters such as capacitance, voltage rating, and current handling before considering any substitute parts.
