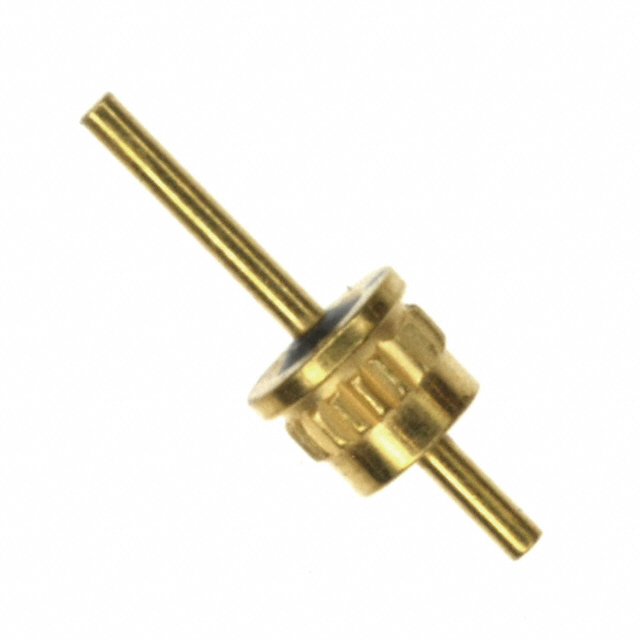

4306-021LF

$21.28

Description：CAP FEEDTHRU 1000PF 200V AXIAL
Series：4306
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:89e1c7fe97cf Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 1000PF 200V AXIAL
Series：4306
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：200V
Current：5:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial, Press Fit
Size / Dimension：0.146" Dia x 0.110" L (3.71mm x 2.79mm)
Capacitance：1000 pF
Tolerance：0%, +100%
DC Resistance (DCR) (Max)：-
Insertion Loss：20dB @ 100MHz
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

4306-021LF

Overview

The 4306-021LF is a feedthrough capacitor from the Tusonix 4306 series, designed for electromagnetic interference (EMI) filtering. It features a capacitance of 1000 pF with a voltage rating of 200 V and a maximum DC current of 5 A. The component utilizes an axial, press-fit mounting style. Its physical dimensions are characterized by a diameter of 0.146 inches and a height of 0.11 inches. The unit operates within a temperature range of -55°C to +125°C and complies with RoHS standards.

Feature Summary

Provides EMI suppression through feedthrough capacitor architecture
Supports axial press-fit mounting for panel integration
Operates reliably across extended industrial temperature ranges

Applications

Electromagnetic interference filtering in electronic systems
Panel-mounted signal or power line conditioning
Industrial equipment requiring robust EMI protection

Procurement Notes

Verify the specific manufacturer part number against official Tusonix documentation to confirm electrical ratings and mechanical specifications. Ensure that the selected variant matches the required circuit parameters and mounting constraints before procurement. Cross-reference datasheets for accurate handling and installation guidelines.

Selection Notes

Select this component based on its 1000 pF capacitance and 200 V rating suitable for specific filtering needs. Consider the axial press-fit form factor for panel mounting requirements. Evaluate the 5 A current capacity and temperature range against operational demands to ensure compatibility with the target application environment.

Part Context

This component belongs to the Tusonix 4306 series of EMI feedthrough filters. Tusonix, a subsidiary of CTS Electronic Components, specializes in EMC products. The 4306 series offers various capacitance values and voltage ratings, providing options for diverse filtering applications in industrial and commercial electronics.
