4306-022LF

Overview

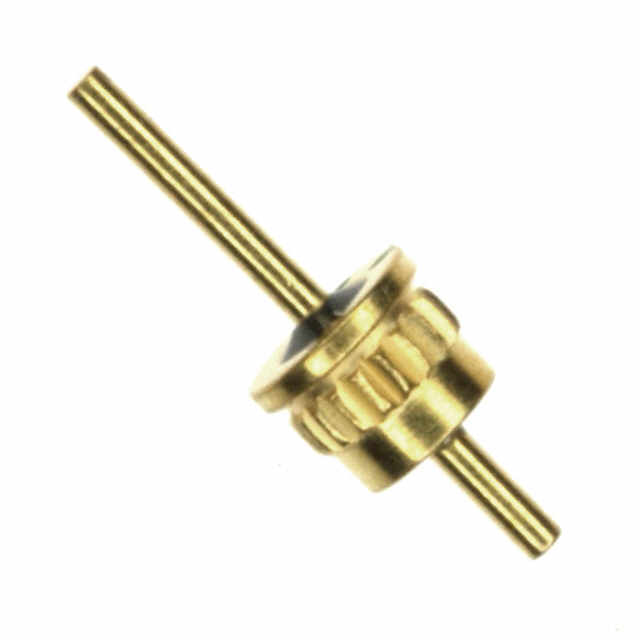

The 4306-022LF is an EMI feedthrough capacitor from the Tusonix 4306 series. It features a capacitance of 1500 pF (1.5 nF) and a voltage rating of 200 V at 125°C. The component has a maximum DC current rating of 5 A and operates within a temperature range of -55°C to +125°C. It utilizes an axial, press-fit package with dimensions of 0.146 inches in diameter and 0.11 inches in height.

Feature Summary

• Provides electromagnetic interference suppression through feedthrough filtering architecture
• Designed for axial press-fit mounting configurations
• Capable of handling high-frequency noise attenuation in electronic circuits

Applications

• Electromagnetic interference filtering in electronic assemblies
• Power supply input/output stages requiring feedthrough capacitors
• High-reliability systems operating within specified thermal ranges

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm RoHS compliance status as indicated in product documentation. Ensure storage conditions maintain integrity prior to installation. Validate axial lead specifications match panel hole requirements for proper press-fit assembly.

Selection Notes

Select this component when a 1500 pF capacitance value is required for EMI suppression. Ensure the circuit voltage does not exceed 200 V at maximum operating temperatures. Verify that the 5 A current rating meets system load requirements. Confirm compatibility with axial press-fit mounting methods for mechanical integration.

Part Context

This part belongs to the Tusonix 4306 series of EMI feedthrough filters. The series offers various capacitance values and voltage ratings for different filtering needs. Tusonix, a subsidiary of CTS Electronic Components, manufactures these components for industrial and commercial applications requiring reliable noise reduction.

Replacement Considerations

Consult official substitution guides for equivalent parts within the 4306 series or compatible feedthrough capacitor families. Verify electrical parameters such as capacitance, voltage rating, and current handling before replacement.
