4306-023LF

Overview

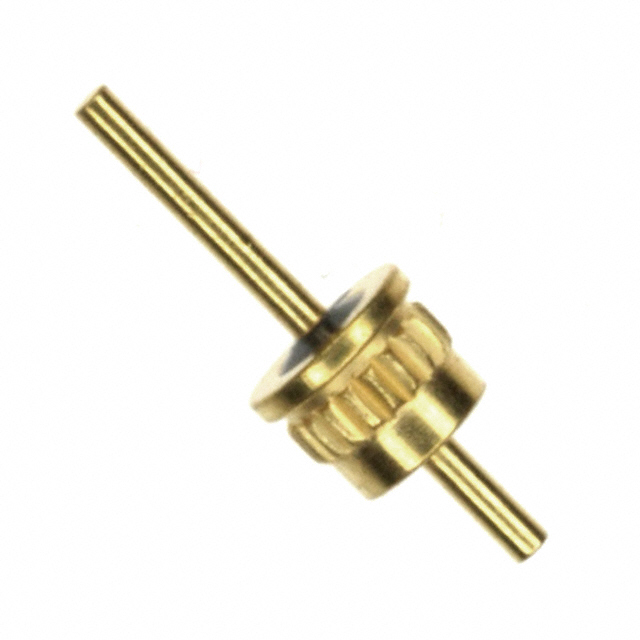

The 4306-023LF is a feedthrough capacitor from the Tusonix 4306 series, designed for electromagnetic interference suppression. It features a capacitance of 10000 pF (0.01 µF) with a tolerance of 0% to +100%. The component is rated for 50V and supports a maximum current of 5 A. It utilizes an axial press-fit package configuration. The device operates within a temperature range of -55°C to +125°C and complies with RoHS3 standards.

Feature Summary

• Provides effective electromagnetic interference filtering through feedthrough capacitor architecture
• Supports high-current applications with a 5 A rating
• Utilizes axial press-fit mounting for secure installation

Applications

• Electromagnetic interference suppression in electronic circuits
• Power line filtering for low-voltage systems
• Signal integrity protection in industrial equipment

Procurement Notes

Verify the specific axial press-fit mechanical dimensions against the official datasheet before integration into panel designs. Confirm that the 0% to +100% capacitance tolerance aligns with circuit requirements. Ensure the 50V rating and 5A current capacity are sufficient for the target application environment. Check for RoHS3 compliance documentation if required by regulatory standards.

Selection Notes

Select this component when a feedthrough filter is required for low-voltage, moderate-current applications. The axial press-fit form factor is suitable for bulkhead or panel mounting scenarios. Consider the wide capacitance tolerance when designing precision timing or filtering circuits. Compare against other series like 4305 or 4702 if higher voltage or different capacitance values are needed.

Part Context

This part belongs to the Tusonix 4306 series of EMI feedthrough filters manufactured by CTS Electronic Components. The series focuses on axial configurations for robust mounting. It serves as a passive component for noise reduction in power and signal lines, distinct from pi-filter variants found in other product lines.

Replacement Considerations

Direct substitutes may include other 4306 series parts with adjusted ratings, such as the 4306-001LF. Verify pin compatibility and electrical specifications before substitution.
