Product Detailed Parameters
- Description：CAP FEEDTHRU 0.027UF 50V AXIAL
- Series：4306
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：50V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Press Fit
- Size / Dimension：0.146" Dia x 0.110" L (3.71mm x 2.79mm)
- Capacitance：0.027 µF
- Tolerance：0%, +100%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：42dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

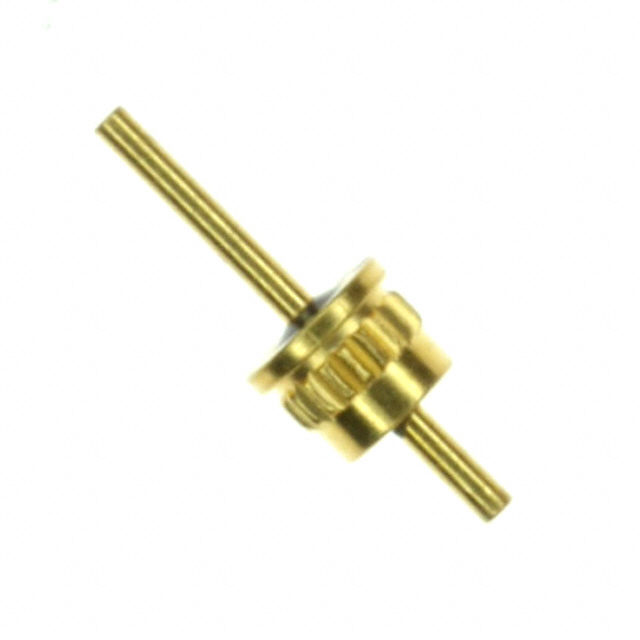

The 4306-024LF is a feedthrough capacitor from the Tusonix 4306 series, designed for electromagnetic interference (EMI) filtering. It features a capacitance of 0.027 µF with a voltage rating of 50V and a current handling capacity of 5 A. The component utilizes an axial, press-fit package configuration. Its physical dimensions are specified as 0.027 µF capacitance, 50V rated voltage, and 5A current rating. The device operates within a temperature range of -55°C to +125°C.
Feature Summary
- Provides EMI suppression through feedthrough capacitor architecture
- Supports axial mounting via press-fit termination method
- Operates reliably across extended industrial temperature ranges
Applications
- Electromagnetic interference filtering in electronic circuits
- Power supply input/output noise reduction
- Signal line protection in communication equipment
Procurement Notes
Verify RoHS3 compliance status and lead times directly with CTS Electronic Components or authorized distributors. Confirm axial press-fit compatibility with panel thickness specifications. Ensure voltage and current ratings meet circuit requirements. Check for alternative packaging options if bulk quantities are needed. Validate datasheet revisions for any parameter updates before final design integration.
Selection Notes
Select this component when axial feedthrough topology is required for compact EMI filtering. The 50V rating suits low-voltage DC applications. Press-fit installation eliminates soldering, suitable for high-reliability environments. Consider the 0.027 µF value for specific frequency attenuation needs. Verify mechanical fit against chassis hole dimensions.
Part Context
Part of the Tusonix 4306 series of feedthrough capacitors manufactured by CTS Electronic Components. This series offers various capacitance values and voltage ratings for EMI suppression. The 4306-024LF specifically targets applications requiring axial orientation and press-fit mounting for robust connection.
Replacement Considerations
Consult official CTS documentation for direct cross-reference part numbers. Verify equivalent capacitance, voltage, current, and package dimensions before substitution. Ensure replacement components maintain RoHS3 compliance and operating temperature range.
