4306-029LF

Overview

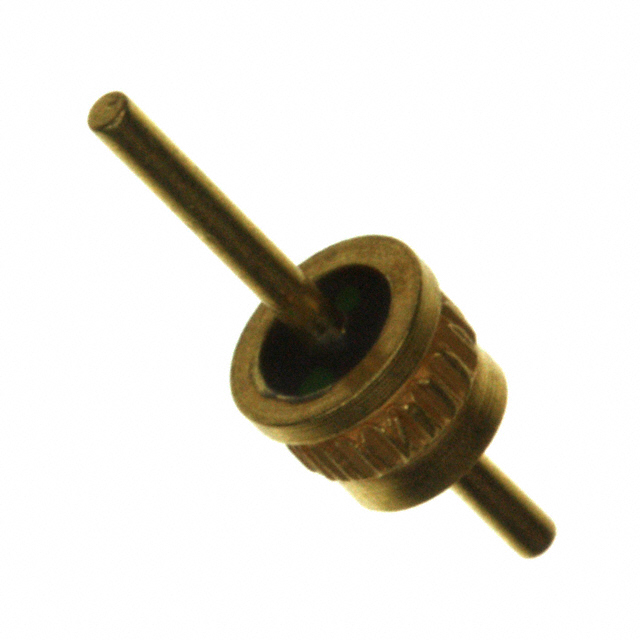

The 4306-029LF is a feedthrough capacitor from the Tusonix 4306 series, designed for EMI suppression. It features a capacitance of 100 pF with a tolerance of 0% to +100%. The component is rated for 200 V and supports a maximum current of 5 A. It operates within a temperature range of -55°C to +125°C. The package is axial press-fit type, measuring 3.55 mm in diameter and 10.16 mm in length, with a lead diameter of 0.76 mm.

Feature Summary

• Provides effective electromagnetic interference filtering through feedthrough architecture
• Supports high-current applications up to 5 A with robust thermal stability
• Utilizes axial press-fit mounting for secure chassis or panel integration

Applications

• Electromagnetic interference suppression in electronic circuits
• Power line filtering for sensitive equipment
• Chassis-mounted noise reduction in industrial systems

Procurement Notes

Verify the specific suffix requirements against the manufacturer's official datasheet to ensure correct capacitance tolerance and voltage ratings. Confirm that the axial press-fit mounting style aligns with your panel design constraints. Check RoHS compliance status as indicated in the latest documentation before finalizing procurement specifications.

Selection Notes

Select this component when a compact axial feedthrough filter is required for 200 V applications. Ensure the 100 pF capacitance value meets the circuit's filtering needs. Verify that the 5 A current rating is sufficient for the intended load. Confirm compatibility with press-fit installation methods during the mechanical design phase.

Part Context

This part belongs to the Tusonix 4306 series of feedthrough capacitors manufactured by CTS Electronic Components. The series offers various capacitance values and voltage ratings for EMI filtering. The 4306-029LF specifically provides 100 pF capacitance at 200 V, suitable for general-purpose noise suppression in axial configurations.

Replacement Considerations

Consult the official Tusonix/CTS catalog for direct substitutes within the 4306 series. Verify equivalent electrical parameters such as capacitance, voltage, and current ratings. Ensure mechanical compatibility with existing mounting holes for press-fit installation.
