Product Detailed Parameters
- Description：CAP FEEDTHRU 2700PF 100V AXIAL
- Series：4306
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：100V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Press Fit
- Size / Dimension：0.146" Dia x 0.110" L (3.71mm x 2.79mm)
- Capacitance：2700 pF
- Tolerance：0%, +100%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：25dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

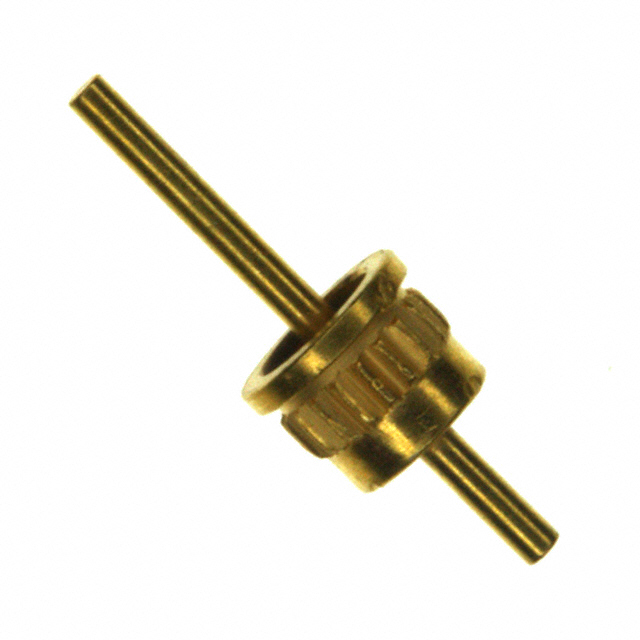

The 4306-030LF is a feedthrough capacitor from the Tusonix 4306 series, designed for EMI/RFI suppression. It features a capacitance of 2700 pF with a tolerance of 0% to +100%. The component has a rated voltage of 100V and supports a current of 5 A. It utilizes an axial, press-fit package measuring 0.146 inches in diameter by 0.110 inches in length. The device provides insertion loss of 25 dB at 100 MHz and operates within a temperature range of -55°C to +125°C.
Feature Summary
- Provides effective electromagnetic interference and radio frequency interference suppression through feedthrough architecture.
- Features axial construction suitable for press-fit mounting applications.
- Capable of handling continuous current loads up to 5 Amperes.
Applications
- EMI/RFI filtering in electronic circuits
- Power line filtering systems
- General electronic equipment noise suppression
Procurement Notes
Verify RoHS compliance status as documentation indicates conflicting information regarding the LF suffix versus specific datasheet declarations. Confirm package dimensions and lead configuration match design requirements before integration. Ensure operating voltage and current ratings align with circuit specifications to prevent component failure.
Selection Notes
Select this component for applications requiring axial feedthrough filtering with moderate capacitance values. Consider the 0.146-inch diameter for panel cutout compatibility. Evaluate the 5A current rating against peak load requirements. Compare insertion loss characteristics against other series options if higher attenuation is necessary.
Part Context
This part belongs to the Tusonix 4306 series of feedthrough capacitors. The series offers various capacitance values and voltage ratings tailored for different filtering needs. Components in this family typically utilize ceramic dielectric materials for stable performance across wide temperature ranges.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference data with manufacturer catalogs for equivalent axial feedthrough capacitors meeting identical electrical and mechanical specifications.
