Product Detailed Parameters
- Description：CAP FEEDTHRU 200V AXIAL
- Series：4306
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Press Fit
- Size / Dimension：0.146" Dia x 0.110" L (3.71mm x 2.79mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

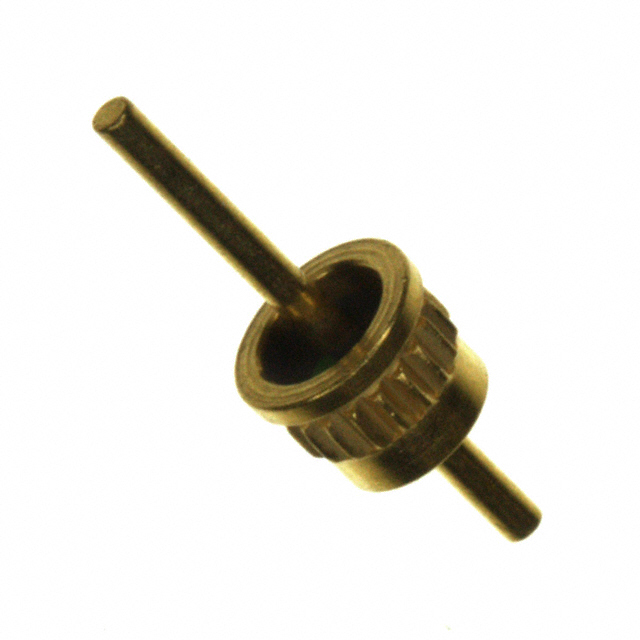

The 4306-680LF is a feed-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features an axial leaded design with eyelet termination for panel mounting. The component has a rated voltage of 200V and operates within a temperature range of -55°C to +125°C. It is RoHS compliant and classified under the 4306 series.
Feature Summary
- Provides electromagnetic interference (EMI) filtering through feed-through capacitor architecture
- Features axial leads with eyelet terminals for secure panel mounting
- Operates reliably in extreme temperatures ranging from -55°C to +125°C
Applications
- Electromagnetic interference suppression in electronic circuits
- Panel-mounted filtering applications requiring axial leaded components
- Harsh environment electronics operating at high temperatures
Procurement Notes
Verify the specific capacitance value against official datasheets, as distributor listings may lack this parameter. Confirm the exact termination style matches the eyelet requirement. Ensure the 200V rating meets circuit specifications. Check RoHS compliance status if required by project standards. Validate package dimensions for panel cutout compatibility before ordering.
Selection Notes
Select this component when axial mounting with eyelets is preferred over surface mount or standard through-hole options. Consider the 200V rating for appropriate voltage headroom. Evaluate the operating temperature range against environmental conditions. Compare insertion loss characteristics if frequency-specific attenuation is critical. Verify physical dimensions fit the designated panel space.
Part Context
This part belongs to the 4306 series of feed-through capacitors from Tusonix/CTS. These components are designed for EMI suppression in various electronic systems. The series offers different capacitance values and voltage ratings. The 4306-680LF specifically utilizes an axial package with eyelet terminations for robust mechanical attachment.
