Product Detailed Parameters
- Description：CAP FEEDTHRU 200V AXIAL
- Series：4306
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Press Fit
- Size / Dimension：0.146" Dia x 0.110" L (3.71mm x 2.79mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

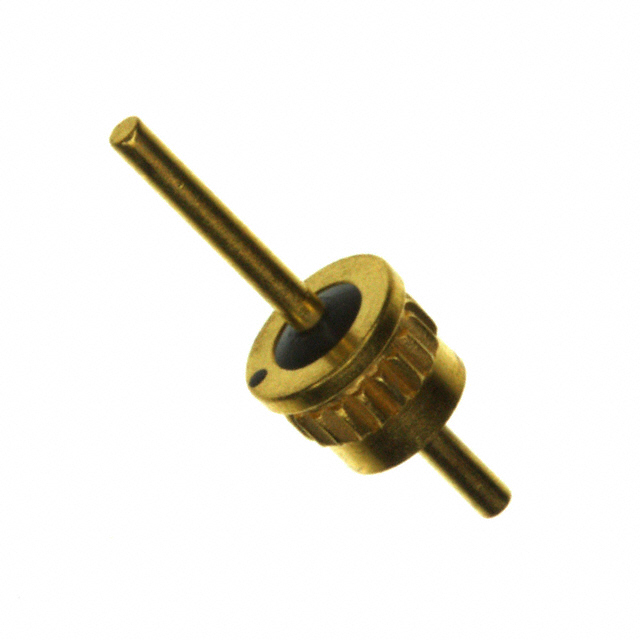

The 4306-681LF is a feed-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features an axial leaded package with crimp termination and is rated for 200V. The component operates within a temperature range of -55°C to +125°C. It is designed for electromagnetic interference (EMI) filtering applications.
Feature Summary
- Provides EMI suppression via feed-through architecture
- Features axial leads with crimp termination for secure mounting
- Operates reliably across extended industrial temperature ranges
Applications
- Electromagnetic interference filtering in electronic circuits
- Power line conditioning for sensitive equipment
- Signal integrity protection in communication systems
Procurement Notes
Verify the specific capacitance value and insertion loss specifications against the official datasheet before procurement, as these parameters are critical for circuit performance. Confirm that the axial crimp termination style matches your assembly requirements. Ensure the 200V rating meets the system voltage constraints. Check RoHS compliance status if required by your manufacturing standards.
Selection Notes
Select this component when a robust, high-voltage feed-through solution is needed for EMI suppression. The axial crimp design offers mechanical stability compared to standard through-hole options. Consider the operating temperature range to ensure reliability in harsh environments. Verify that the physical dimensions fit the available board space or chassis cutout.
Part Context
This part belongs to the 4306 series of feed-through capacitors from Tusonix/CTS. This series is characterized by its ability to handle significant current while providing effective noise attenuation. The components are typically used in applications requiring reliable filtering without introducing excessive signal distortion.
Replacement Considerations
Consult the manufacturer's cross-reference list for verified substitutes. Ensure any replacement maintains the same voltage rating, capacitance tolerance, and termination style. Verify that the substitute component meets the same environmental and regulatory standards.
