4310-010

Overview

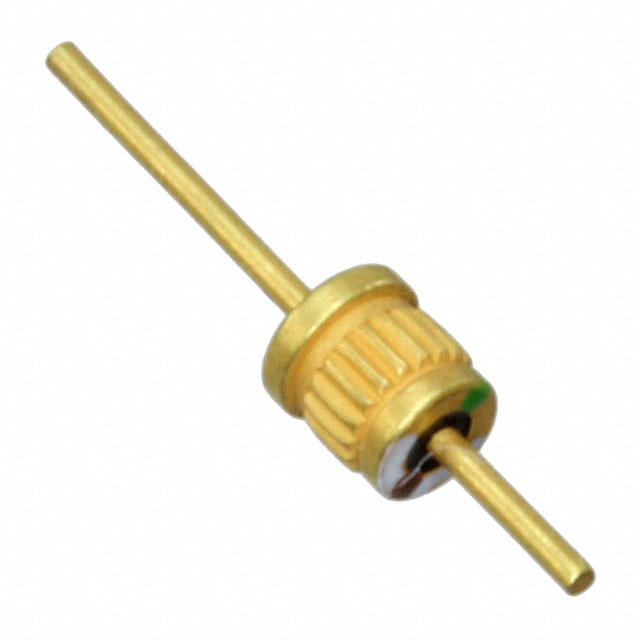

The 4310-010 is a miniature press-in EMI/RFI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. This axial component features a capacitance of 2700 pF and a rated voltage of 100V. It is designed for high-current applications with a current rating of 1 A. The device utilizes a press-fit installation method and operates within a temperature range of -55°C to +125°C. Its compact physical dimensions are characterized by a diameter of 2.29 mm.

Feature Summary

• Miniature press-in EMI/RFI filter design
• Axial lead configuration for feedthrough mounting
• High thermal stability across extended temperature ranges

Applications

• Electromagnetic interference suppression in electronic circuits
• Power line filtering for DC applications
• Compact enclosure integration requiring press-in mounting

Procurement Notes

Verify the specific suffix requirements when ordering, as variants such as 4310-010LF may exist. Confirm that the press-fit mechanical interface matches the panel thickness and hole specifications of the target application. Ensure the 100V rating and 1A current capacity meet the system's electrical demands before procurement.

Selection Notes

Select this component when space constraints necessitate a miniature form factor combined with robust EMI suppression capabilities. The press-fit installation offers a secure mechanical connection without soldering, which can be advantageous for certain assembly processes. Evaluate the 2700 pF capacitance value against the required attenuation frequencies for the specific noise profile encountered in the application.

Part Context

This part belongs to the 4310 series of miniature press-in EMI/RFI filters produced by Tusonix. The series includes various capacitance values and current ratings, all sharing the same compact axial design philosophy. These components are engineered to provide effective noise filtration in tight spaces where traditional through-hole or surface-mount filters may not fit.

Replacement Considerations

Direct substitutes include other parts from the Tusonix 4310 series with identical electrical parameters. Cross-brand replacements must match the 2700 pF capacitance, 100V rating, 1A current handling, and the specific axial press-fit mechanical dimensions to ensure compatibility.
