435F24CXXIKT

Crystals Overview

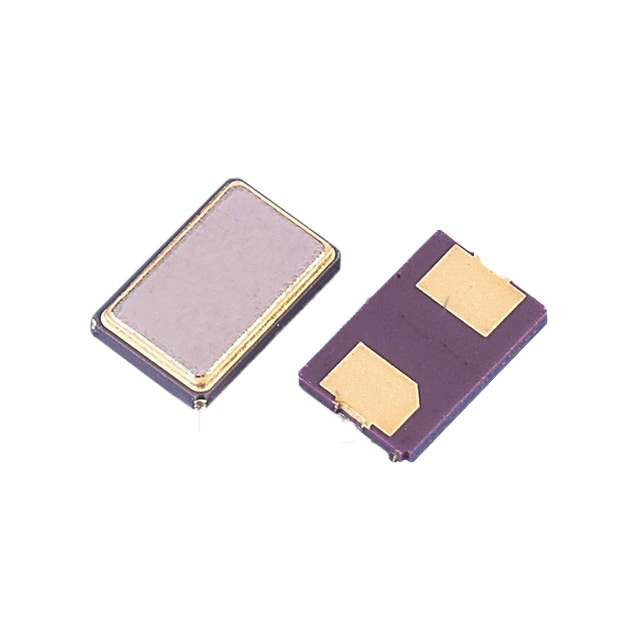

The CTS-Frequency Controls 435F24CXXIKT is a fundamental mode quartz crystal resonator operating at 24.576 MHz. It features a frequency tolerance of ±15ppm and stability of ±30ppm over the temperature range of -40°C to +85°C. The component utilizes an 8pF load capacitance and exhibits an equivalent series resistance (ESR) of 40 Ohms maximum. It is housed in a compact 2-SMD, No Lead package with dimensions of 5.0mm x 3.2mm.

Crystals Feature Summary

• Fundamental resonance mode operation for stable frequency generation
• Compact surface-mount footprint designed for space-constrained PCB layouts
• Low equivalent series resistance supporting efficient circuit drive levels

Crystals Applications

• Microcontroller clock sources
• Communication module timing references
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific suffix characters replacing 'XX' in the part number to confirm exact frequency tolerance and stability ratings. Confirm that the required ESR and load capacitance values align with the target oscillator circuit design specifications before procurement.

Crystals Selection Notes

Select this component when a 24.576 MHz reference is required in a 5.0mm x 3.2mm package. Ensure the application environment remains within the specified -40°C to +85°C operational temperature range to maintain the stated frequency stability metrics.

Crystals Part Context

This model belongs to the CTS 435 series of surface-mount crystals. The series offers various frequencies and package sizes, providing designers with options for different board space requirements while maintaining consistent performance characteristics across the product line.

Crystals Replacement Considerations

Substitutes must match the 24.576 MHz frequency, 8pF load capacitance, and 2-SMD no-lead package form factor. Verify that alternative components meet or exceed the ±15ppm tolerance and 40 Ohm ESR specifications.
