4400-007LF

Overview

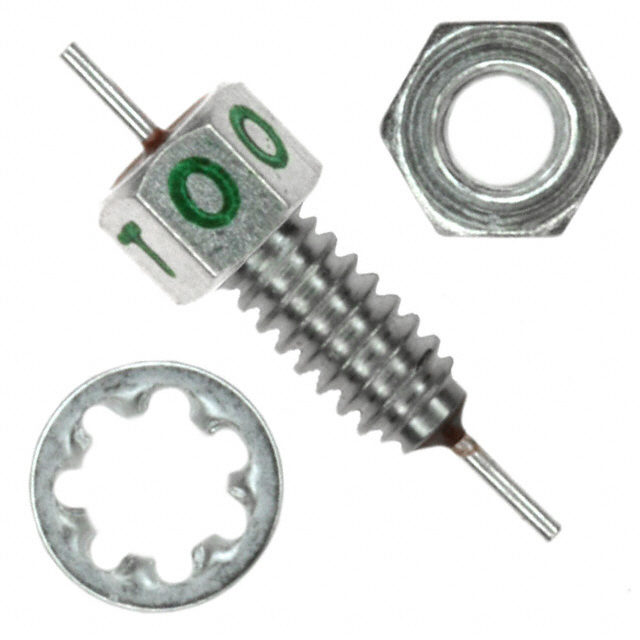

The Tusonix 4400-007LF is a feedthrough capacitor rated at 200V with an axial bushing package. It features a capacitance of 1 nF and supports a maximum DC current of 5 A. The component operates within a temperature range of -55°C to +125°C. Its physical dimensions are 3.96 mm in diameter and 15.88 mm in length, with leads measuring 0.76 mm in diameter.

Feature Summary

• Provides electromagnetic interference filtering through a solder-mount feedthrough design.

Applications

• EMI suppression in electronic circuits

Procurement Notes

Verify the specific manufacturer part number against official datasheets to ensure compatibility with your circuit requirements. Confirm that the axial bushing package and lead dimensions match your board layout constraints. Check for RoHS compliance status if required by your manufacturing standards. Ensure the voltage and current ratings meet the operational demands of your application before procurement.

Selection Notes

Select this component when a low-capacitance feedthrough filter is needed for high-voltage applications up to 200V. The axial bushing style is suitable for panel mounting or direct wire connections. Consider the 5 A current rating and 1 nF capacitance value for specific EMI filtering needs. Verify thermal stability requirements against the -55°C to +125°C operating range.

Part Context

This component belongs to the Tusonix 4400 series of feedthrough capacitors. These filters are designed for effective noise reduction in power and signal lines. The axial configuration allows for straightforward integration into various electronic assemblies requiring robust EMI protection.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
