Product Detailed Parameters
- Description：CAP FEEDTHRU 200V AXIAL
- Series：4400
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：10:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Bushing
- Size / Dimension：0.156" Dia x 0.340" L (3.97mm x 8.64mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：5dB @ 1GHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：4-40
Download product information
Overview

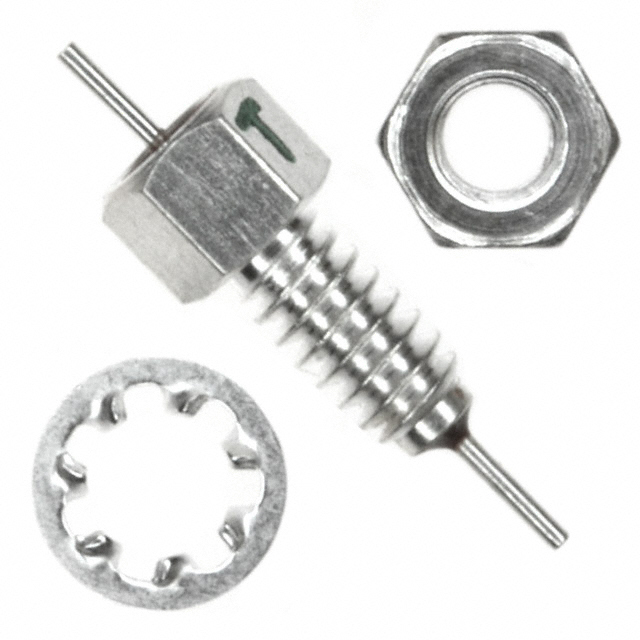

The Tusonix 4400-008LF is an EMI feedthrough filter capacitor with a capacitance of 10 pF and a voltage rating of 200 V. It features a 10 A current rating and operates within a temperature range of -55°C to +125°C. The component utilizes a 4-40 thread size in an axial/bushing package, providing insertion loss characteristics suitable for electromagnetic interference suppression.
Feature Summary
- Provides electromagnetic interference suppression through feedthrough filtering technology
- Supports high current handling capabilities up to 10 amperes
- Operates reliably across extended industrial temperature ranges
Applications
- Electronic equipment requiring EMI/RFI noise reduction
- Power supply input/output filtering circuits
- Industrial control systems with high current demands
Procurement Notes
Verify the specific insertion loss requirements against application needs, as values vary by frequency. Confirm mechanical compatibility with the 4-40 thread size and axial mounting style. Ensure the 200V DC rating and 10A current capacity meet circuit specifications. Check RoHS3 compliance status if required by project standards.
Selection Notes
Select this component when high current handling and compact axial mounting are required. The 10 pF capacitance targets specific high-frequency noise profiles. Consider the thermal operating range for harsh environments. Compare against other series members for different capacitance or voltage ratings if parameters do not align perfectly.
Part Context
This part belongs to the Tusonix 4400 series of feedthrough capacitors manufactured by CTS Electronic Components. The series offers various capacitance values and voltage ratings using similar axial bushing packages. These components are designed for robust EMI suppression in demanding electronic applications.
Replacement Considerations
Direct substitutes include other 4400 series parts like 4400-091LF for similar axial configurations. Verify thread size and current ratings match exactly. Cross-reference capacitance and voltage ratings to ensure functional equivalence in the target circuit design.
