Product Detailed Parameters
- Description：CAP FEEDTHRU 200V AXIAL
- Series：4400
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：10:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Bushing
- Size / Dimension：0.156" Dia x 0.340" L (3.97mm x 8.64mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：3dB @ 100MHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：4-40
Download product information
Overview

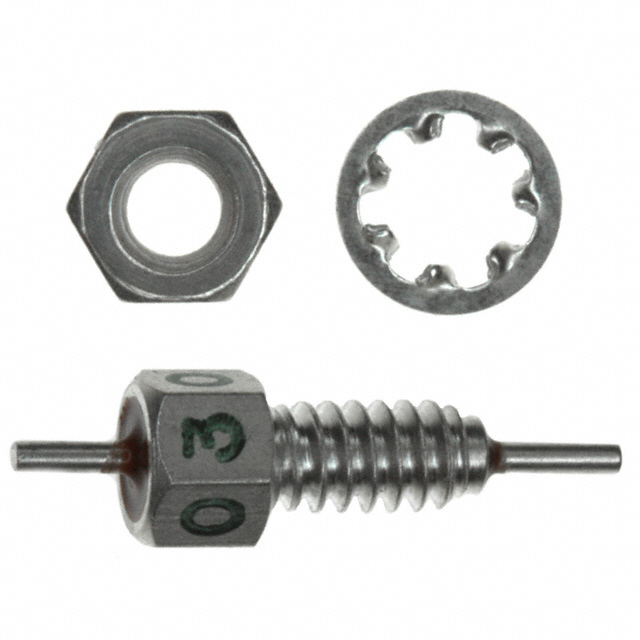

The 4400-030LF is an axial feed-through capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a rated voltage of 200V and a current rating of 10 A. The component operates within a temperature range of -55°C to +125°C. Its physical dimensions are 0.156 inches in diameter by 0.340 inches in length (3.97mm x 8.64mm), with a 4-40 thread size for mounting.
Feature Summary
- Provides electromagnetic interference suppression through feed-through capacitor technology
- Features axial construction with bushing package for secure mechanical mounting
- Designed for high-temperature operation up to 125°C
Applications
- Electromagnetic interference filtering in electronic circuits
- Power supply line conditioning
- Signal integrity protection in sensitive equipment
Procurement Notes
Verify the specific capacitance value as official documentation varies between sources. Confirm the current rating is 10 A rather than higher values listed for other series members. Ensure the 4-40 thread specification matches your mounting requirements. Check RoHS compliance status before finalizing procurement decisions.
Selection Notes
Select this component when axial feed-through topology is required for EMI suppression. Consider the 200V rating and 10 A current capacity against circuit demands. Evaluate the -55°C to +125°C operating range for environmental suitability. Compare physical dimensions and thread size against available board space and mounting hardware constraints.
Part Context
This part belongs to the 4400 series of feed-through capacitors from Tusonix/CTS. These components are designed for robust EMI filtering applications requiring high current handling and stable performance across wide temperature ranges. The series offers various capacitance and voltage ratings to suit different circuit protection needs.
Replacement Considerations
Direct substitutes may include other 4400-series parts with matching electrical specifications. Verify equivalent voltage, current, and dimensional compatibility before substitution.
