Product Detailed Parameters
- Description：CAP FEEDTHRU 200V AXIAL
- Series：4400
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：10:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Bushing
- Size / Dimension：0.156" Dia x 0.340" L (3.97mm x 8.64mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：10dB @ 1GHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：4-40
Download product information
Overview

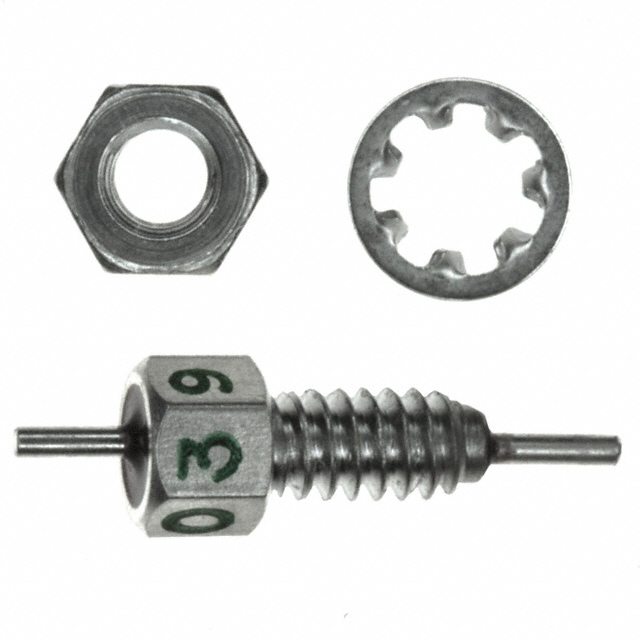

The 4400-039LF is an EMI feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance of 25 pF and a voltage rating of 200 V. The component supports a maximum DC current of 10 A and operates within a temperature range of -55°C to +125°C. It utilizes an axial package with a bushing configuration and measures 0.159 inches in diameter.
Feature Summary
- Provides electromagnetic interference suppression through feedthrough capacitor technology
- Features axial leaded construction with a threaded bushing for panel mounting
- Designed for high-temperature operation up to 125°C
Applications
- Electronic equipment requiring EMI filtering
- Power supply input/output lines
- Signal line protection in sensitive circuits
Procurement Notes
Verify the specific datasheet version for the 4400-039LF to confirm exact dimensional tolerances and termination details. Ensure compatibility with the intended panel thickness for the axial bushing mount. Confirm RoHS compliance status if required by your manufacturing standards before finalizing procurement.
Selection Notes
Select this component when a low capacitance value of 25 pF is required for high-frequency noise attenuation. The 200 V rating and 10 A current capacity suit moderate power applications. Consider the axial bushing form factor for direct chassis or panel integration without additional hardware.
Part Context
This part belongs to the 4400 series of EMI feedthrough filters from Tusonix/CTS. The series offers various capacitance values and voltage ratings in axial configurations. These components are designed to replace traditional discrete filter networks with a single compact unit for improved performance and space efficiency.
Replacement Considerations
Check equivalent parts from other manufacturers offering 25 pF, 200 V axial feedthrough capacitors. Verify that substitute components match the 10 A current rating and -55°C to +125°C operating temperature range. Ensure mechanical dimensions align with existing panel cutouts.
