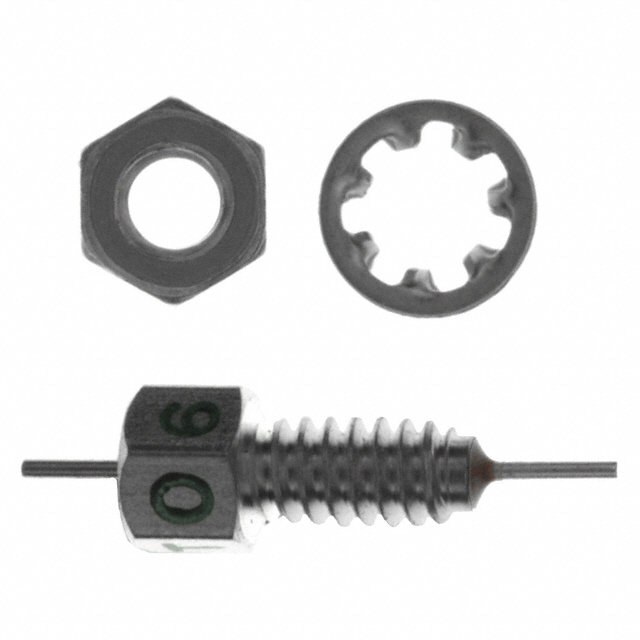

4400-060LF

$29.34

Description：FILTER LC 0.027UF
Series：4400
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:aaafac1b1b46 Category: EMI/RFI Filters (LC, RC Networks) Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER LC 0.027UF
Series：4400
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Type：Low Pass
Filter Order：2nd
Technology：LC
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：45dB @ 100MHz
Resistance - Channel (Ohms)：-
Values：C = 0.027µF
ESD Protection：No
Operating Temperature：-55°C ~ 125°C
Applications：General Purpose
Voltage - Rated：50V
Mounting Type：-
Package / Case：Axial, Bushing
Size / Dimension：0.157" Dia x 0.340" L (3.98mm x 8.64mm)
Height：-
Current：10:00 AM

Download product information

4400-060LF

Overview

The 4400-060LF is a miniature EMI feedthrough filter manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the 4400 series and features an LC circuit topology designed for low-pass filtering applications. The component has a capacitance value of 0.027 µF and supports a maximum DC current of 10 A. It operates within a temperature range of -55°C to +125°C. The physical package is axial with a bushing configuration, utilizing M3x0.5 thread specifications for mounting.

Feature Summary

Miniature form factor suitable for space-constrained designs
LC network topology for effective EMI suppression
Threaded bushing mounting for secure installation

Applications

Applications requiring small size and high performance
Circuits needing threaded mounting solutions
EMI/RFI filtering in compact electronic assemblies

Procurement Notes

Verify the specific datasheet version for the 4400-060LF to confirm exact insertion loss characteristics at target frequencies. Ensure the M3x0.5 thread specification matches the panel cutout requirements. Confirm RoHS3 compliance status if required by the end product regulations. Check for any recent PCN updates regarding epoxy or material changes.

Selection Notes

Select this component when a miniature LC filter is needed with a 0.027 µF capacitance rating. The 10 A current handling capability makes it suitable for power line filtering. The axial bushing package allows for direct panel mounting via the M3x0.5 threads. Consider the -55°C to +125°C operating range for environmental suitability.

Part Context

This part is part of the Tusonix 4400 series of miniature EMI filters. The series is known for providing high performance in small packages. Other parts in the series vary in capacitance and voltage ratings but share similar mounting styles and thermal characteristics. This specific model focuses on the 0.027 µF capacitance value within the 10 A current class.
