4400-076LF

Overview

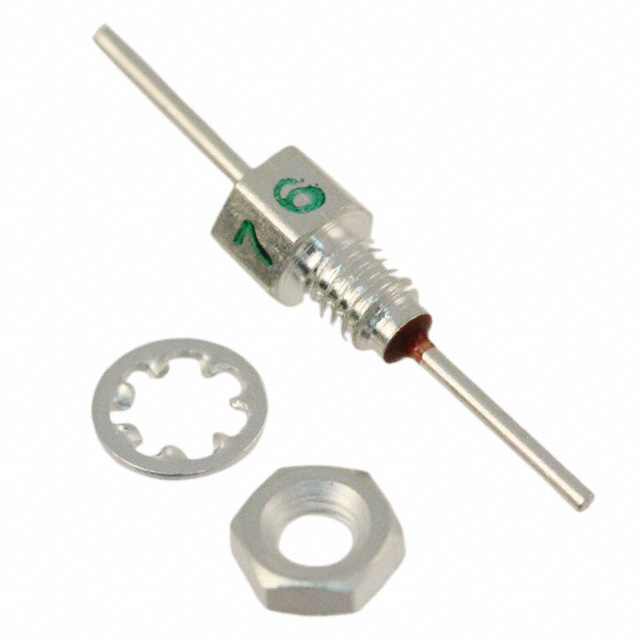

The Tusonix 4400-076LF is a feed-through capacitor rated at 200V with a capacitance of 100 pF. It features an axial, bushing-style package designed for EMI suppression. The component operates within a temperature range of -55°C to +125°C and complies with RoHS3 standards.

Feature Summary

• Provides effective electromagnetic interference (EMI) filtering through feed-through architecture
• Features metric bushing design for secure mounting in panel applications
• Capable of handling high voltage ratings suitable for demanding electronic environments

Applications

• Electromagnetic interference suppression in electronic circuits
• Panel-mounted filtering applications requiring robust mechanical stability
• High-voltage signal conditioning where low capacitance is required

Procurement Notes

Verify the specific suffix requirements against official datasheets to ensure correct termination and mounting specifications. Confirm RoHS3 compliance status directly with the manufacturer or authorized distributors prior to procurement to meet regulatory standards.

Selection Notes

Select this component when a low capacitance value of 100 pF is required for high-frequency noise attenuation. Ensure the application supports the 200V rating and axial bushing form factor. Verify thermal management capabilities within the specified -55°C to +125°C operating range.

Part Context

This part belongs to the 4400 series of feed-through capacitors manufactured by Tusonix, a subsidiary of CTS Electronic Components. The series is characterized by its ability to provide significant insertion loss for EMI reduction while maintaining structural integrity in harsh environments.

Replacement Considerations

Consult official substitution guides for equivalent parts from the same family. Verify that any alternative component matches the 100 pF capacitance, 200V rating, and axial bushing dimensions to ensure physical and electrical compatibility.
