4400-089LF

Overview

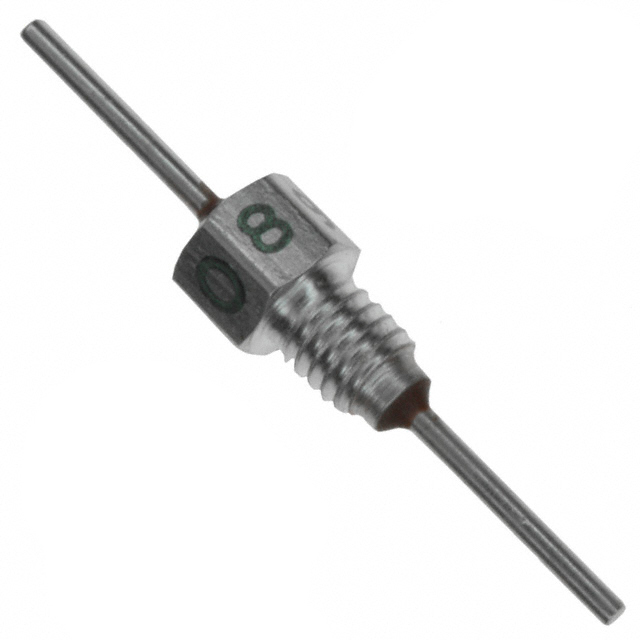

The 4400-089LF is an axial feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It belongs to the 4400 series and features a rated voltage of 50V with a current rating of 10 A. The component operates within a temperature range of -55°C to +125°C. Its physical dimensions are 0.157 inches in diameter by 0.276 inches in length (4.00mm x 7.00mm), utilizing M3x0.5 thread specifications. This device is designed for electromagnetic interference suppression in electronic circuits.

Feature Summary

• Provides effective electromagnetic interference filtering through feedthrough architecture
• Supports high current handling capabilities suitable for power line applications
• Maintains operational stability across extreme industrial temperature ranges

Applications

• Electromagnetic interference suppression in electronic equipment
• Power line filtering for sensitive circuitry
• Industrial control systems requiring robust EMI protection

Procurement Notes

Verify the specific capacitance value and insertion loss characteristics against the official datasheet before integration, as these parameters define the filter's performance at target frequencies. Confirm that the M3x0.5 threading matches the mounting hardware requirements of the application chassis. Ensure the 50V rating and 10A current capacity exceed the maximum expected operating conditions to guarantee long-term reliability and safety margins.

Selection Notes

Select this component when axial feedthrough topology is required for low-inductance filtering in constrained spaces. The 4400 series offers a balance of current handling and voltage rating suitable for general-purpose EMI suppression. Consider the physical dimensions and thread specification during mechanical design to ensure proper installation. Compare against other series if higher voltage ratings or different capacitance values are necessary for specific noise profiles.

Part Context

This part is part of the Tusonix 4400 series of feedthrough capacitors, which are widely used for EMI/RFI suppression. The series includes various capacitance values and voltage ratings to suit different application needs. As a subsidiary of CTS, Tusonix provides specialized filtering solutions for aerospace, defense, and industrial markets where reliability under harsh conditions is critical.

Replacement Considerations

Check for direct substitutes within the 4400 series with matching electrical ratings and mechanical dimensions. Verify compatibility with existing mounting threads and PCB layouts. Ensure replacement components meet the same environmental and regulatory standards.
